Release Info
| Catalog ID | NAT-T8 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 23, 1989 |
| Publisher | Natsume |
| Developer | Zap |
| Players | 1 |
| Peripherals | Famicom Controller |

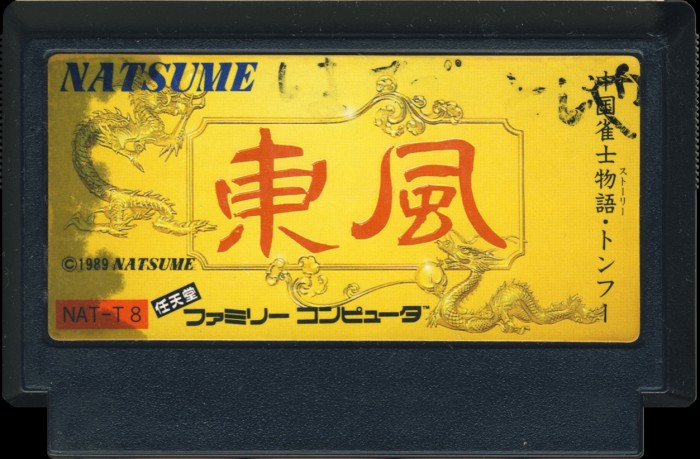

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NAT-T8 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

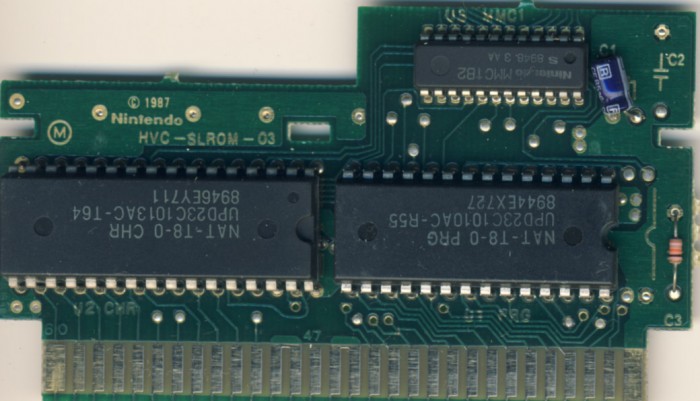

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8948 |
| Est First Run | December 1989 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAT-T8-0 PRG | 128 KB | 0CABBF0F | 1 |
| CHR0 | NAT-T8-0 CHR | 128 KB | DF44E6EB | 1 |
| N/A | ROMs Combined | 256 KB | 5AB54795 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC R55 | Mask ROM 128 KB | DIP-28 | 8944 EX727 | 8944 | |
| U2 CHR | NEC | UPD23C1013AC T64 | Mask ROM 128 KB | DIP-32 | 8946 EY711 | 8946 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8948 3 AA | 8948 |
