Release Info
| Catalog ID | SHI-OB |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 8, 1989 |
| Publisher | Shinsei |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SHI-OB |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 05 |

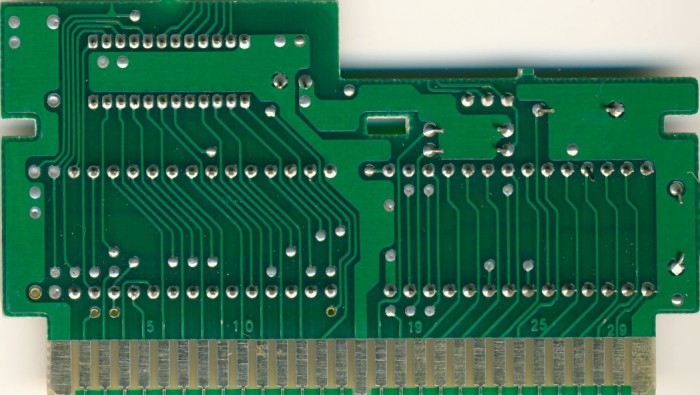

PCB Properties
| Name | HVC-SL1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8944 - 8949 (2) |
| Est First Run | November 1989 |
| PCB Class | HVC-SL1ROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHI-OB-0 PRG | 128 KB | ED9A3AC6 | 2 |
| CHR0 | SHI-OB-0 CHR | 128 KB | 73CACDE4 | 2 |
| N/A | ROMs Combined | 256 KB | 4E5257D7 | 2 |

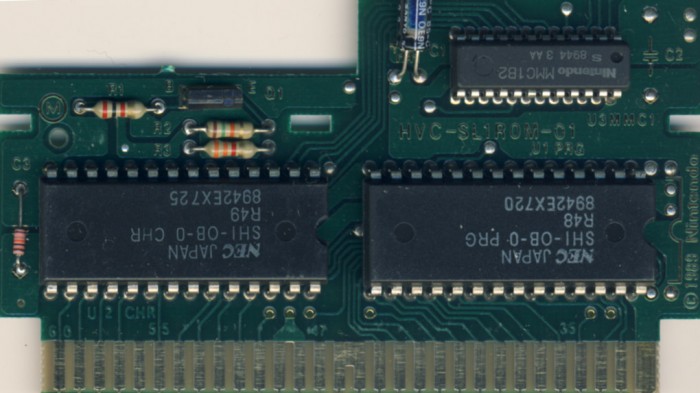

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8942 EX720 | 8942 | ||
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8942 EX725 | 8942 | ||
| Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8944 3 AA | 8944 |
