Release Info
| Catalog ID | SHI-RN |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 10, 1988 |
| Publisher | Shinsei |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Sky Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SHI-RN |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

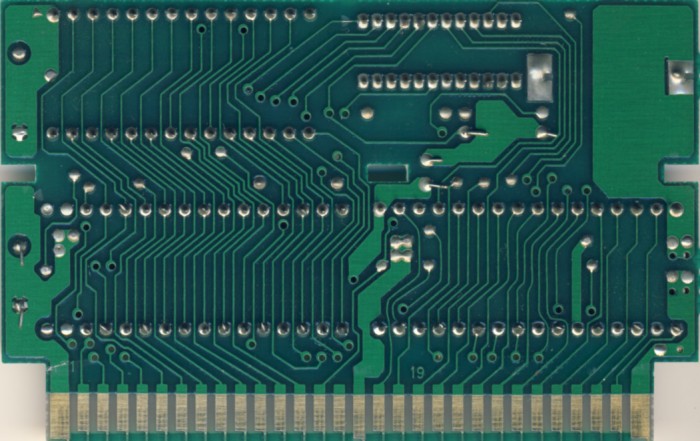

PCB Properties
| Name | HVC-SKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8829 |
| Est First Run | July 1988 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHI-RN-0 PRG | 128 KB | 15D53E78 | 1 |
| CHR0 | SHI-RN-0 CHR | 128 KB | 12D719D9 | 1 |
| N/A | ROMs Combined | 256 KB | C1719664 | 1 |

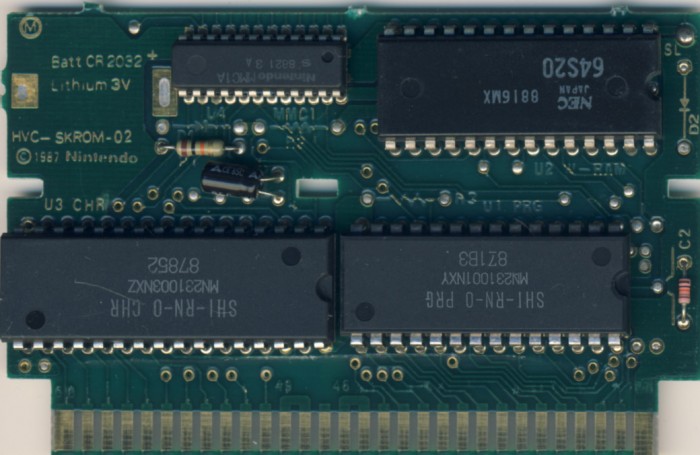

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NXY | Mask ROM 128 KB | DIP-28 | 8 B3 | 8829 | |
| U2 W-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8816 MX | 8816 | |
| U3 CHR | Panasonic | MN231003 NXZ | Mask ROM 128 KB | DIP-32 | 878 52 | 8829 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8821 3 A | 8821 |
