Release Info
| Catalog ID | DFC-FH |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | January 31, 1989 |
| Publisher | Data East |
| Developer | Sakata SAS |
| Players | 4 |
| Peripherals | Famicom Controller |

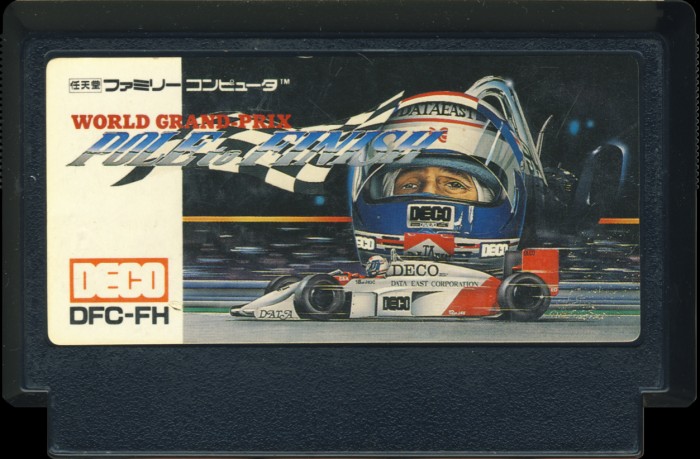

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DFC-FH |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

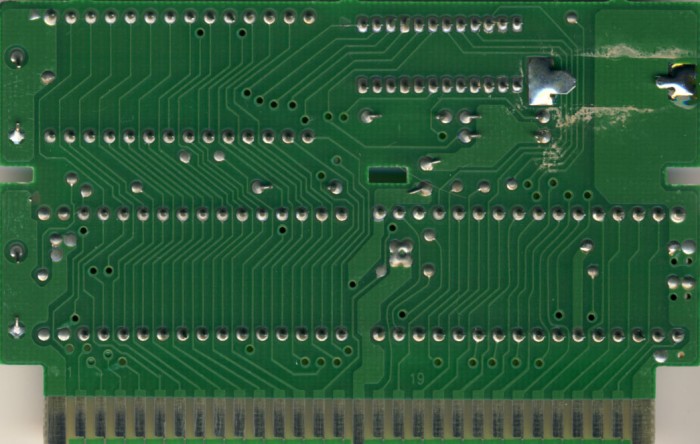

PCB Properties
| Name | HVC-SKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8901 |
| Est First Run | January 1989 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DFC-FH-0 PRG | 128 KB | 2C003FB2 | 1 |
| CHR0 | DFC-FH-0 CHR | 128 KB | 09BBE594 | 1 |
| N/A | ROMs Combined | 256 KB | B5F7E661 | 1 |

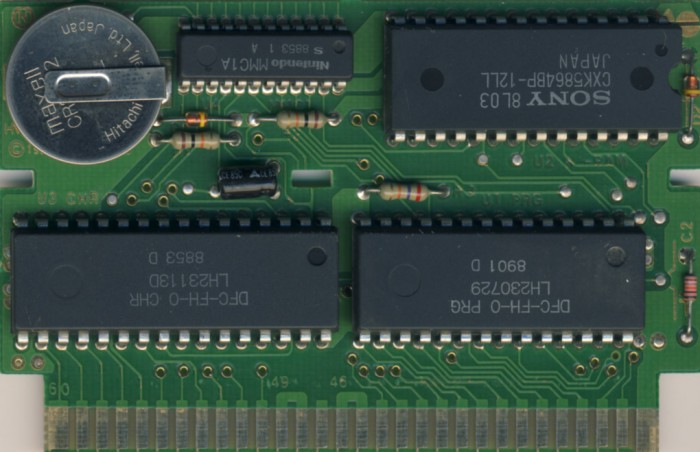

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 29 | Mask ROM 128 KB | DIP-28 | 8901 D | 8901 | |
| U2 W-RAM | Sony | CXK5864BP-12LL | SRAM 8 KB | DIP-28 | 8L 03 | 8848 | |
| U3 CHR | Sharp | LH2311 3D | Mask ROM 128 KB | DIP-32 | 8853 D | 8853 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8853 1 A | 8853 |
