Release Info
| Catalog ID |
NMK-KW |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
November 11, 1988 |
| Publisher |
Jaleco |
| Developer |
NMK |
| Players |
1 |
| Peripherals |
Famicom Controller |

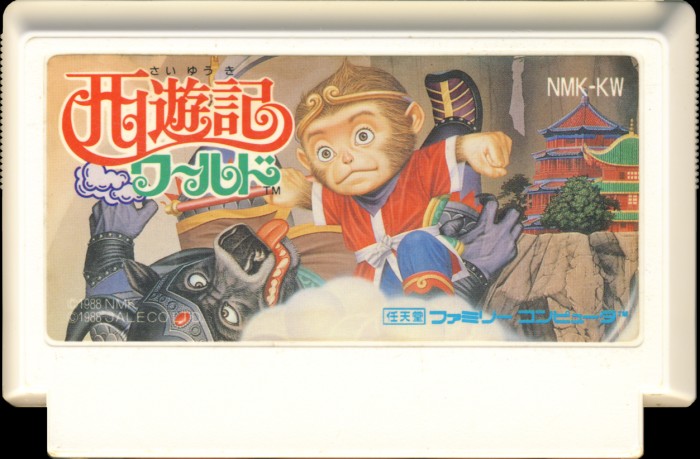

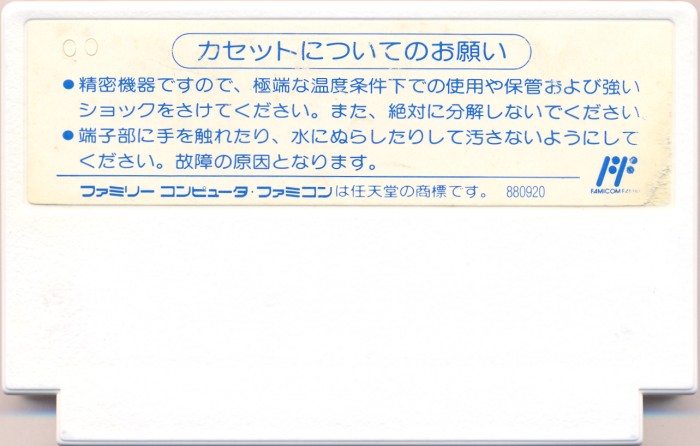

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
White |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
NMK-KW |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
05 |
PCB Properties
| Name |
HVC-UNROM-09 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8839 |
| Est First Run |
September 1988 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
NMK-KW-0 PRG |
128 KB |
69D07DDB |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Ricoh |
RP231024D
0242
|
Mask ROM
128 KB
|
DIP-28 |
8J4
A5
|
8839 |
|
| U2 CHR RAM |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8834
M5
|
8834 |
|
| U3 HC161 |
Toshiba |
74HC161AP
|
74-161 Series
|
DIP-16 |
8828
H
|
8828 |
|
| U4 HC32 |
Toshiba |
74HC32AP
|
74-32 Series
|
DIP-14 |
8819
H
|
8819 |
|
Additional Images
PCB Images
