Release Info
| Catalog ID | HVC-TR |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 21, 1993 |
| Publisher | Nintendo |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

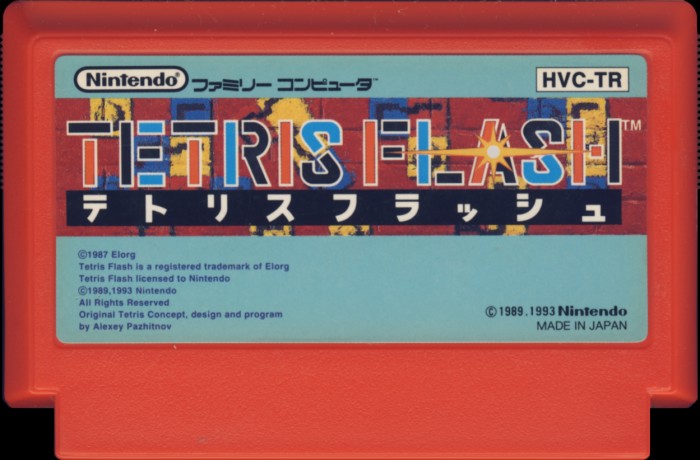

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-TR |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

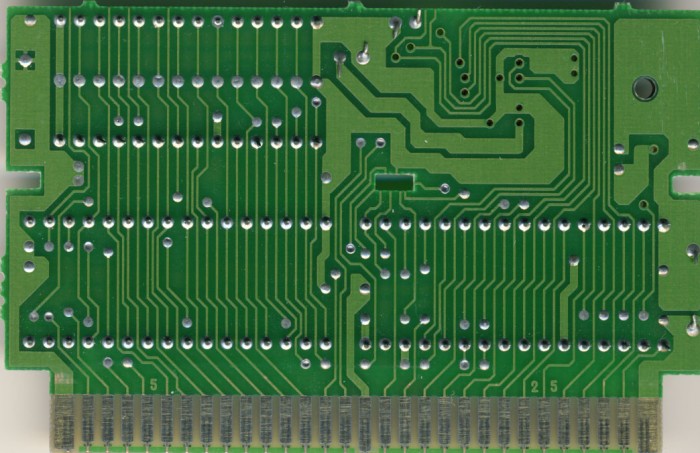

PCB Properties
| Name | HVC-TSROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9337 - 9338 (2) |
| Est First Run | September 1993 |
| PCB Class | HVC-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-TR-0 PRG | 128 KB | 40280A0F | 2 |
| CHR0 | HVC-TR-0 CHR | 128 KB | 73736E45 | 2 |
| N/A | ROMs Combined | 256 KB | 2746B39E | 2 |

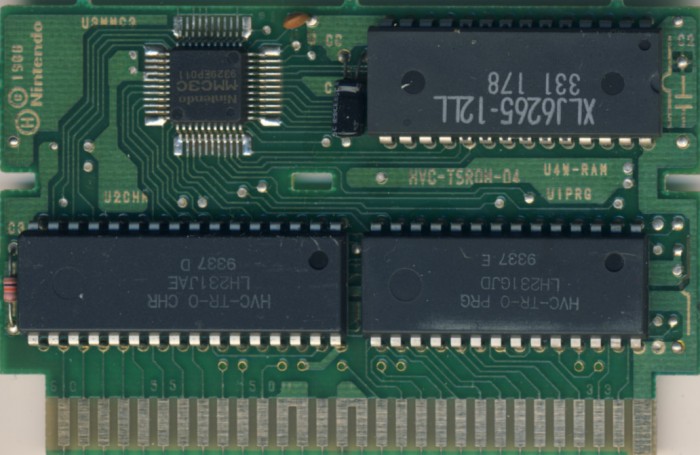

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G JD | Mask ROM 128 KB | DIP-28 | 9337 E | 9337 | |
| U2 CHR | Sharp | LH231J AE | Mask ROM 128 KB | DIP-32 | 9337 D | 9337 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9329 EP011 | 9329 | |
| U4 W-RAM | Rohm | XLJ6265-12LL | SRAM 8 KB | DIP-28 | 331 178 | 9331 |
