Release Info
| Catalog ID | HVC-MA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 9, 1983 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

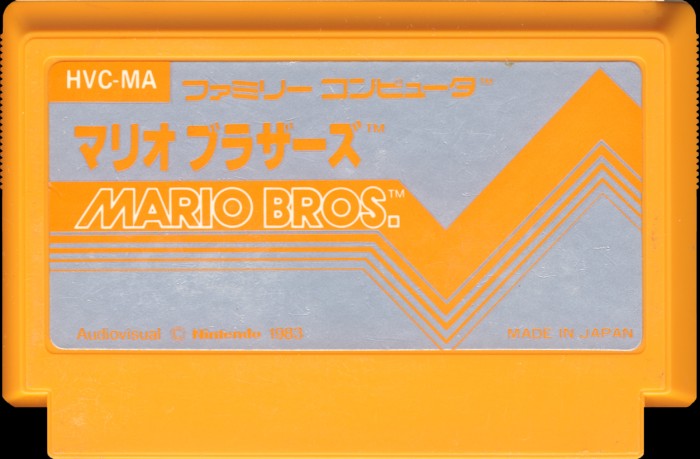

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-MA |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

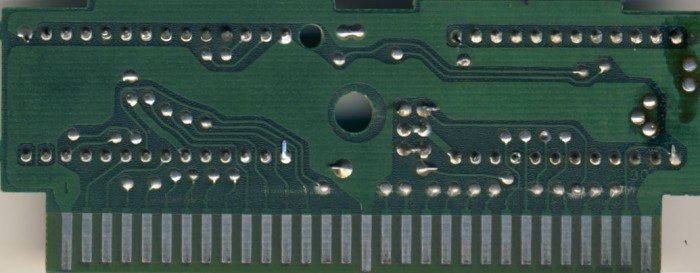

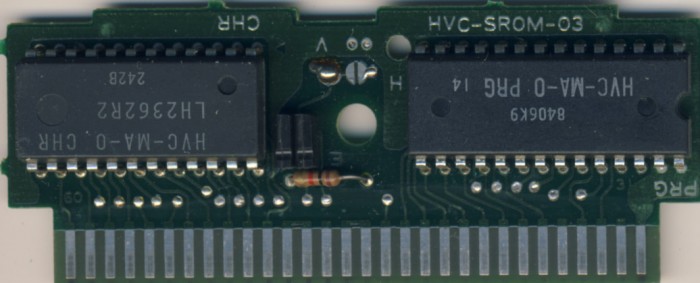

PCB Properties
| Name | HVC-SROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8344 - 8528 (4) |
| Est First Run | November 1983 |
| PCB Class | HVC-SROM |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-MA-0 PRG | 16 KB | 75F6A9F3 | 9 |
| CHR0 | HVC-MA-0 CHR | 8 KB | 10F77435 | 12 |
| N/A | ROMs Combined | 24 KB | C4C3949A | 9 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | UPD23C128 | Mask ROM 16 KB | DIP-28 | 8406 K9 | 8406 | |
| CHR | Sharp | LH2362 R2 | Mask ROM 8 KB | DIP-24 | 42B 2 | 8407 |
