Release Info
| Catalog ID | HVC-DT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 4, 1984 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

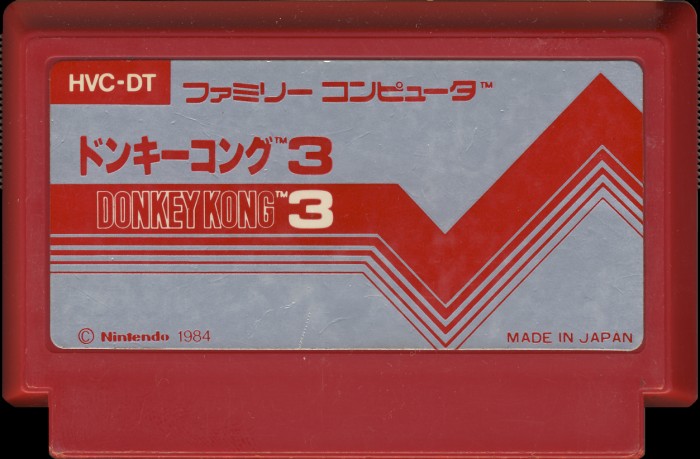

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-DT |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

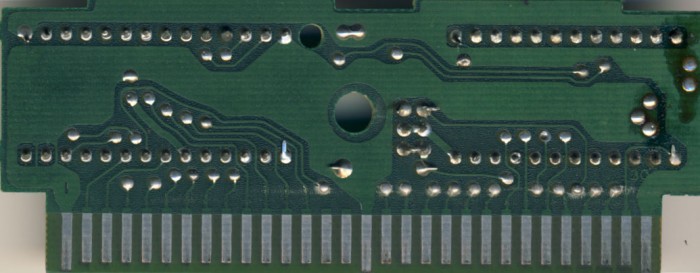

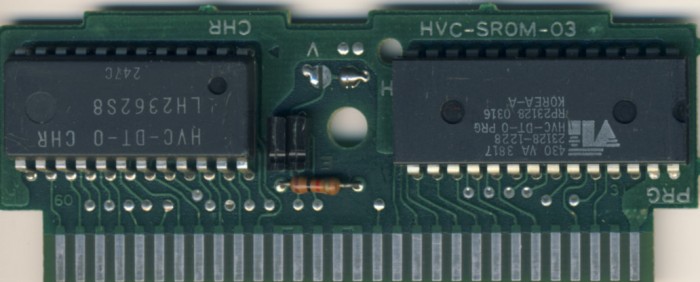

PCB Properties
| Name | HVC-SROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8430 - 8430 (2) |
| Est First Run | July 1984 |
| PCB Class | HVC-SROM |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-DT-0 PRG | 16 KB | 5EF4F30C | 6 |
| CHR0 | HVC-DT-0 CHR | 8 KB | 85D06C57 | 6 |
| N/A | ROMs Combined | 24 KB | B3D74C0D | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | VTI | 23128 1228 | Mask ROM 16 KB | DIP-28 | 430 VA 3817 | 8430 | RP23128 0316 |
| CHR | Sharp | LH2362 S8 | Mask ROM 8 KB | DIP-24 | 47C 2 | 8429 |
