Release Info
| Catalog ID | SFX-MQ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 2, 1988 |
| Publisher | SNK |
| Developer | SNK |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SFX-MQ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

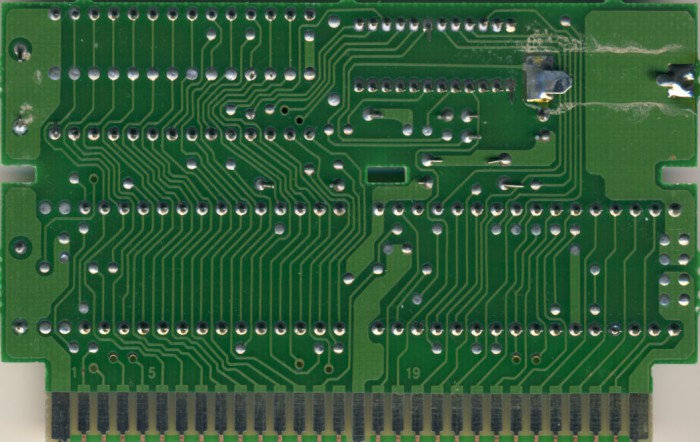

PCB Properties
| Name | HVC-SKROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8849 - 9109 (2) |
| Est First Run | December 1988 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SFX-MQ-1 PRG | 128 KB | 7DD82754 | 1 |
| CHR0 | SFX-MQ-0 CHR | 128 KB | 59720FED | 2 |
| N/A | ROMs Combined | 256 KB | 821F2F9F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 16 | Mask ROM 128 KB | DIP-28 | 9109 D | 9109 | |
| U2 W-RAM | Motorola | MCM60L64P12 | SRAM 8 KB | DIP-28 | 9045 HCK | 9045 | |
| U3 CHR | Sharp | LH2311 68 | Mask ROM 128 KB | DIP-32 | 9109 E | 9109 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9108 5 AA | 9108 |
