Release Info
| Catalog ID | TCF-T6 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 20, 1990 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 1 |
| Peripherals | Famicom Controller |

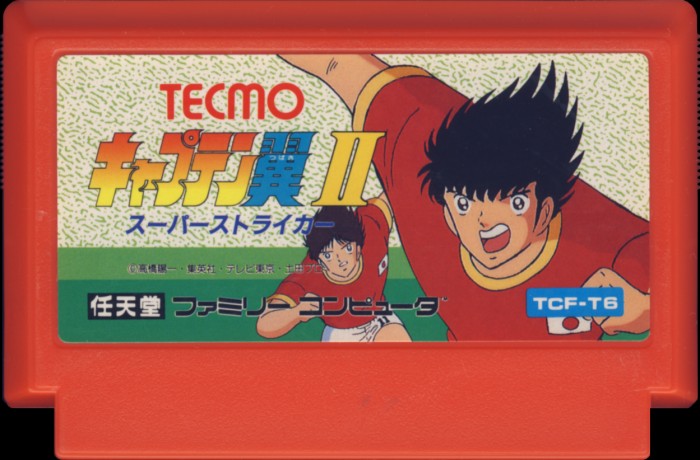

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Orange-Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TCF-T6 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

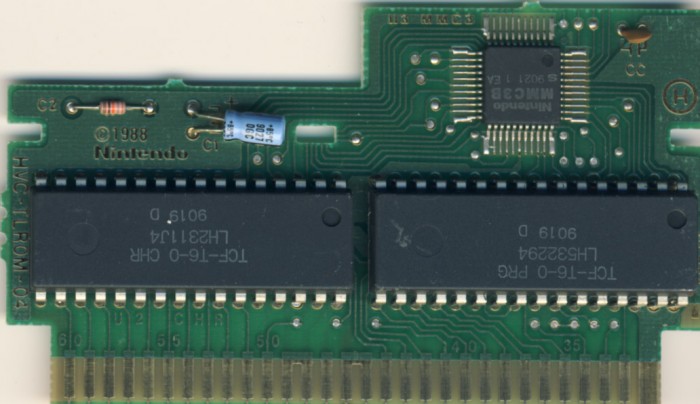

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9021 - 9109 (4) |
| Est First Run | May 1990 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TCF-T6-0 PRG | 256 KB | 2EB08777 | 3 |
| CHR0 | TCF-T6-0 CHR | 128 KB | C38AEF75 | 3 |
| N/A | ROMs Combined | 384 KB | 31B44C65 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 94 | Mask ROM 256 KB | DIP-32 | 9019 D | 9019 | |
| U2 CHR | Sharp | LH2311 J4 | Mask ROM 128 KB | DIP-32 | 9019 D | 9019 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9021 1 EA | 9021 |
