Release Info
| Catalog ID | TCF-NW |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 6, 1990 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 1 |
| Peripherals | Famicom Controller |

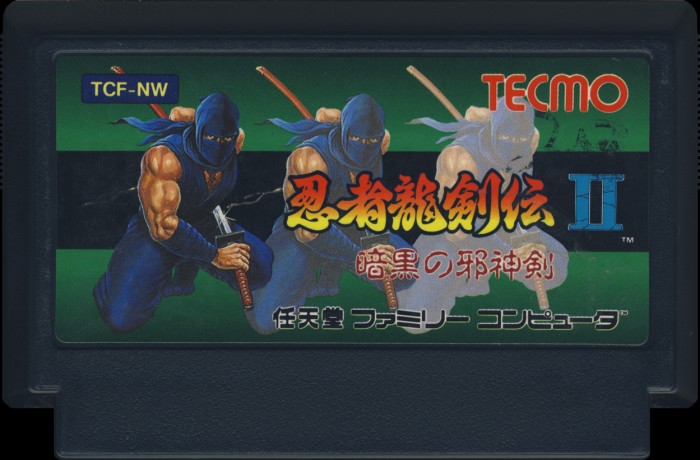

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TCF-NW |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

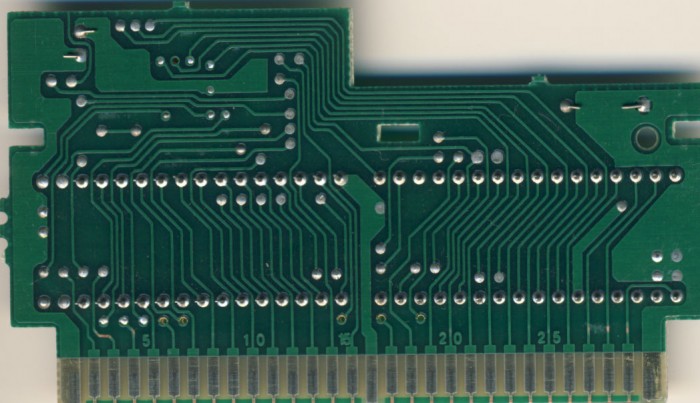

PCB Properties
| Name | HVC-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9004 - 9005 (2) |
| Est First Run | January 1990 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TCF-NW-0 PRG | 128 KB | DEBEA5A6 | 2 |
| CHR0 | TCF-NW-0 CHR | 128 KB | 91012A18 | 2 |
| N/A | ROMs Combined | 256 KB | 7BF8A890 | 2 |

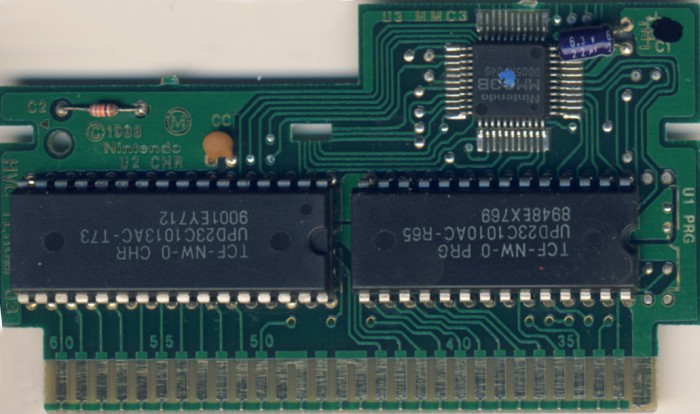

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC R65 | Mask ROM 128 KB | DIP-28 | 8948 EX769 | 8948 | |
| U2 CHR | NEC | UPD23C1013AC T73 | Mask ROM 128 KB | DIP-32 | 9001 EY712 | 9001 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9005 KP046 | 9005 |
