Release Info
| Catalog ID | EFC-DQ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 27, 1986 |
| Publisher | Enix |
| Developer | Chunsoft |
| Players | 1 |
| Peripherals | Famicom Controller |

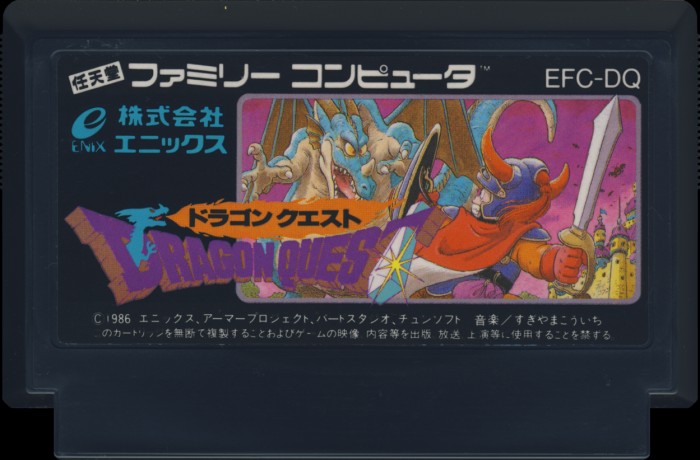

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | EFC-DQ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

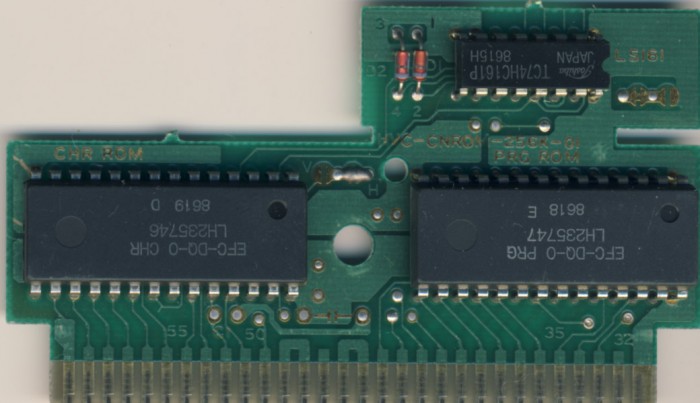

PCB Properties
| Name | HVC-CNROM-256K-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8551 - 9011 (11) |
| Est First Run | December 1985 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | EFC-DQ-0 PRG | 32 KB | 84EFD927 | 10 |
| CHR0 | EFC-DQ-0 CHR | 32 KB | 62CE72F9 | 10 |
| N/A | ROMs Combined | 64 KB | 88053D25 | 10 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2357 47 | Mask ROM 32 KB | DIP-28 | 8618 E | 8618 | |
| CHR ROM | Sharp | LH2357 46 | Mask ROM 32 KB | DIP-28 | 8619 D | 8619 | |
| LS161 | Toshiba | TC74HC161P | 74-161 Series | DIP-16 | 8615 H | 8615 |
