Release Info
| Catalog ID | HFC-TB |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 12, 1986 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Famicom Controller |

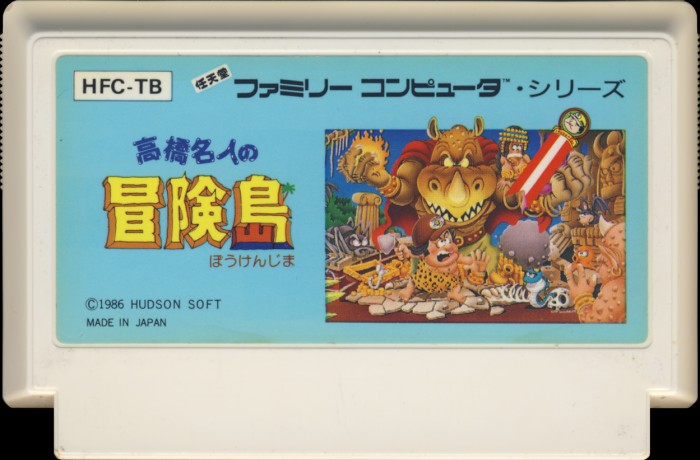

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HFC-TB |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 02 |

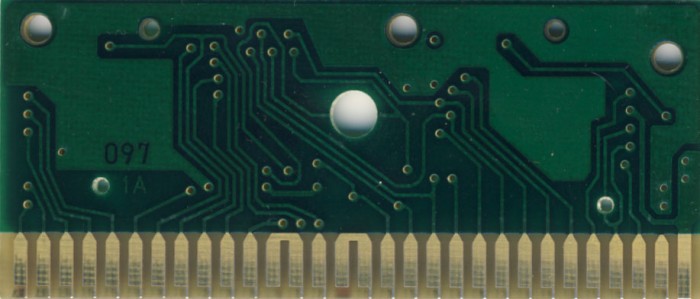

PCB Properties
| Name | 097-1A |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | OKI |
| Mfg Range | 8624 - 8636 (7) |
| Est First Run | June 1986 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 8090E3D6 | 7 |
| CHR0 | Not Present | 32 KB | A90FB063 | 7 |
| N/A | ROMs Combined | 64 KB | 6A457A43 | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | OKI | HFC-TB 0 | Chip-on-Board PCB | PCB | 69 24 | 8636 | 12H-BB |
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP74161 | 74-161 Series | EPOXY |
