Release Info
| Catalog ID | DFC-YQ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 31, 1989 |
| Publisher | Data East |
| Developer | Data East |
| Players | 2 |
| Peripherals | Famicom Controller |

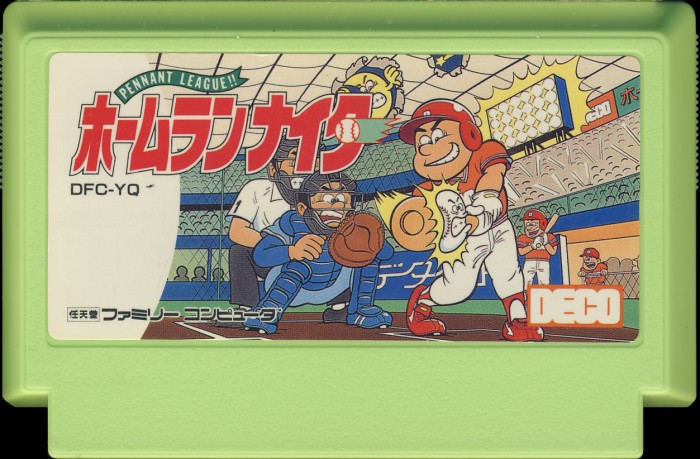

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Yellow Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DFC-YQ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

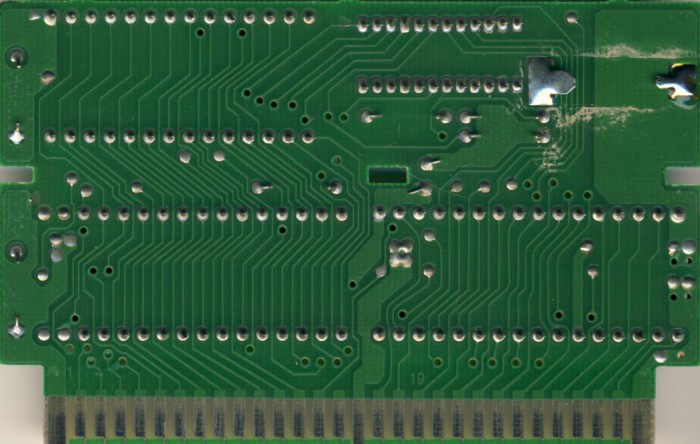

PCB Properties
| Name | HVC-SKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8907 - 8909 (4) |
| Est First Run | February 1989 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DFC-YQ-0 PRG | 128 KB | 52449508 | 4 |
| CHR0 | DFC-YQ-0 CHR | 128 KB | FE7D15EE | 4 |
| N/A | ROMs Combined | 256 KB | 3057B904 | 4 |

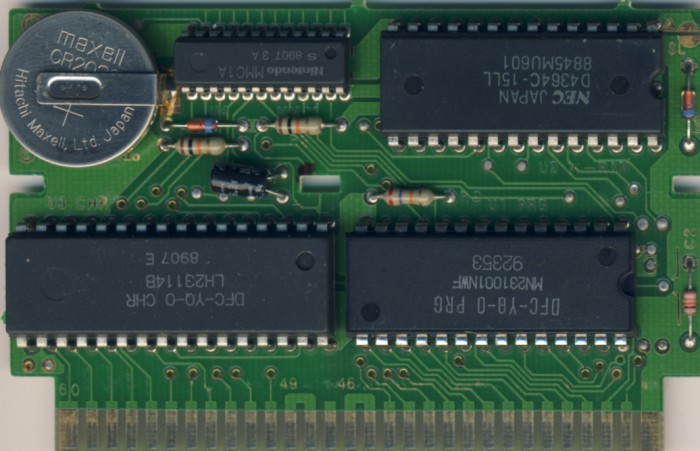

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NWF | Mask ROM 128 KB | DIP-28 | 923 53 | 8907 | |
| U2 W-RAM | NEC | D4364C-15LL | SRAM 8 KB | DIP-28 | 8845 MU601 | 8845 | |
| U3 CHR | Sharp | LH2311 4B | Mask ROM 128 KB | DIP-32 | 8907 E | 8907 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8907 3 A | 8907 |
