Release Info
| Catalog ID | HVC-FR |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 2, 1984 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Famicom Controller |

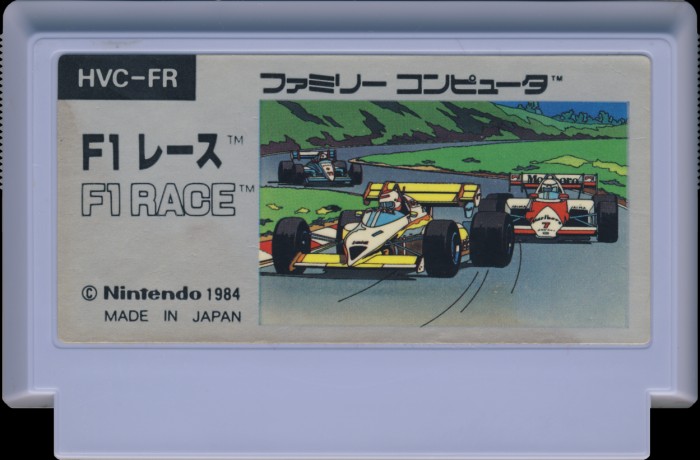

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Lavender |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-FR |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

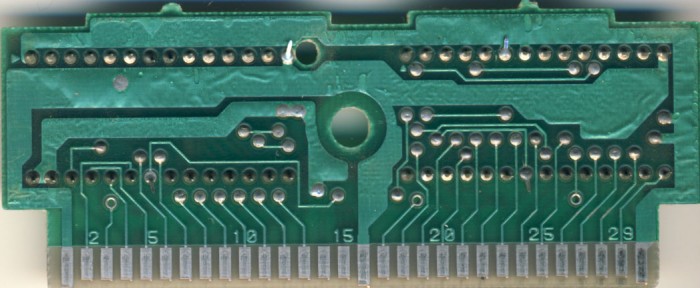

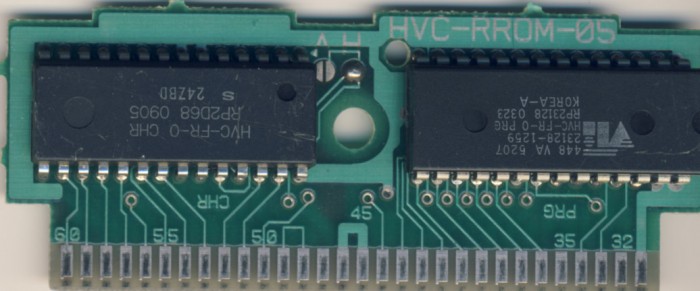

PCB Properties
| Name | HVC-RROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8444 - 8506 (6) |
| Est First Run | November 1984 |
| PCB Class | HVC-RROM |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-FR-0 PRG | 16 KB | 57970078 | 9 |
| CHR0 | HVC-FR-0 CHR | 8 KB | E653DBCB | 9 |
| N/A | ROMs Combined | 24 KB | E0604F76 | 9 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | VTI | 23128 1259 | Mask ROM 16 KB | DIP-28 | 448 VA 5207 | 8448 | RP23128 0323 |
| CHR | Sharp | RP2D68 0905 | Mask ROM 8 KB | DIP-28 | 4ZB 2 | 8450 |
