Release Info
| Catalog ID | SQF-FO |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 27, 1994 |
| Publisher | Square |
| Developer | Square |
| Players | 1 |
| Peripherals | Famicom Controller |

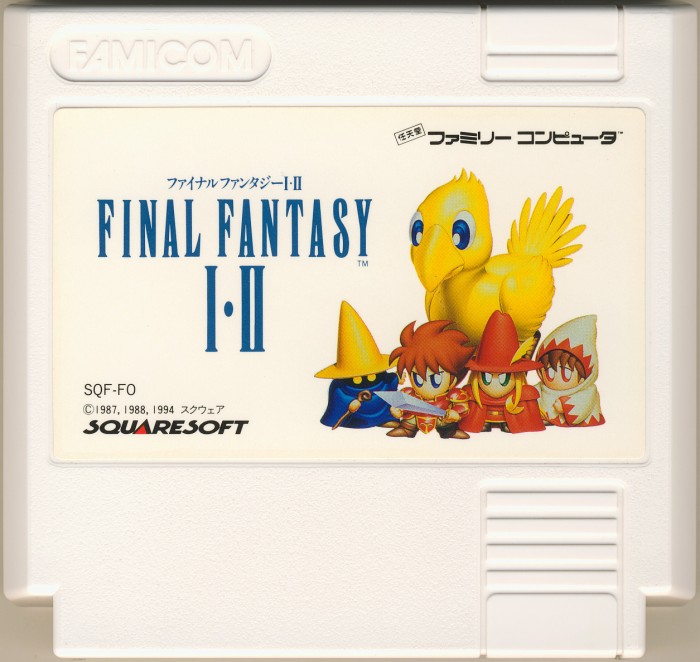

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | SQF-FO |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |
PCB Properties
| Name | HVC-SXROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9404 - 9406 (2) |
| Est First Run | January 1994 |
| PCB Class | HVC-SXROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 32 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | 74xx04, MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SQF-FO-0 PRG | 512 KB | C9556B36 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Fujitsu | MB834000 | Mask ROM 512 KB | DIP-32 | 9404 T01 | 9404 | |
| U2 CHR-RAM | Hyundai | HY6264AP-10LL | SRAM 8 KB | DIP-28 | 9349 NB | 9349 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9244 1 A 170 | 9244 | |
| U4 W-RAM | Hyundai | HY62256ALLP-10 | SRAM 32 KB | DIP-28 | 9345 C | 9345 | |
| U5 HCU04 | Texas Instruments | SN74HCU04N | 74-04 Series | DIP-14 | 331 5DU KER | 9331 |
