Release Info
| Catalog ID | HVC-CI |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 21, 1992 |
| Publisher | Nintendo |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

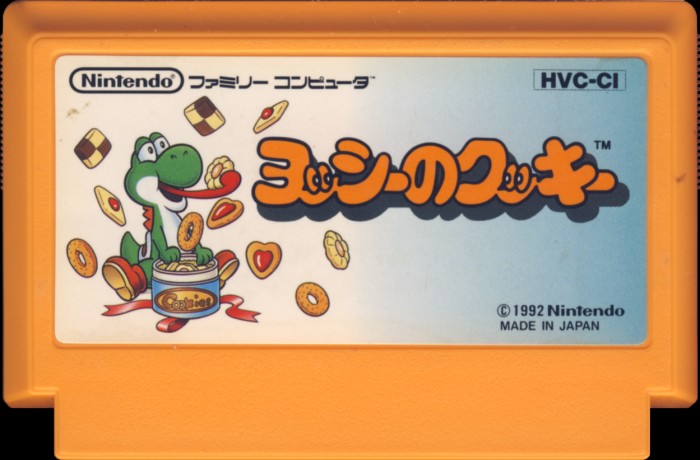

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-CI |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

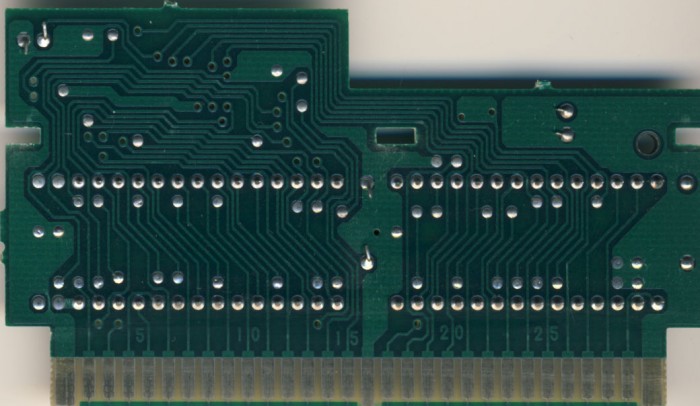

PCB Properties
| Name | HVC-TFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9244 - 9244 (4) |
| Est First Run | November 1992 |
| PCB Class | HVC-TFROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-CI-0 PRG | 128 KB | C9FFC5FC | 4 |
| CHR0 | HVC-CI-0 CHR | 64 KB | B65161BC | 4 |
| N/A | ROMs Combined | 192 KB | F66EC512 | 4 |

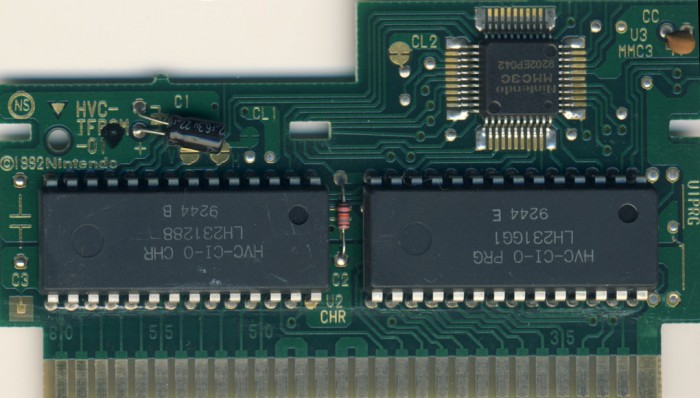

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G G1 | Mask ROM 128 KB | DIP-28 | 9244 E | 9244 | |
| U2 CHR | Sharp | LH2312 88 | Mask ROM 64 KB | DIP-28 | 9244 B | 9244 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9202 EP048 | 9202 |
