Release Info
| Catalog ID | TCF-TP |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 28, 1988 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 1 |
| Peripherals | Famicom Controller |

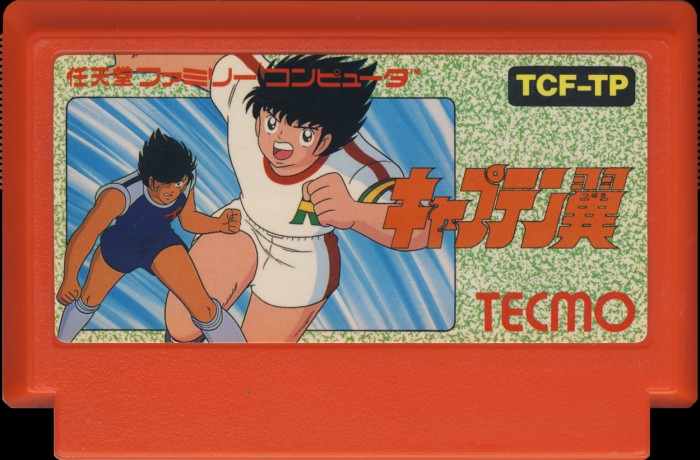

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Orange-Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TCF-TP |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

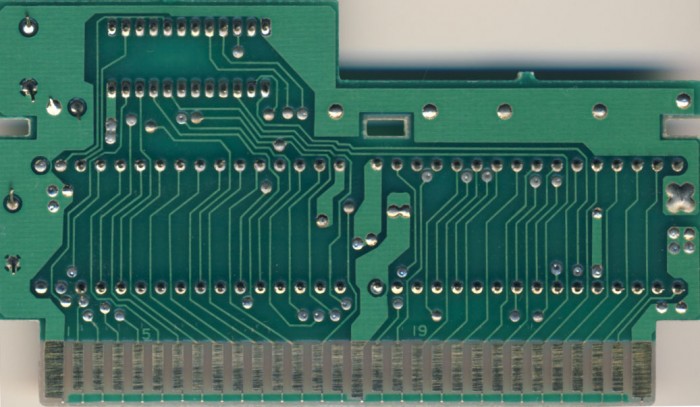

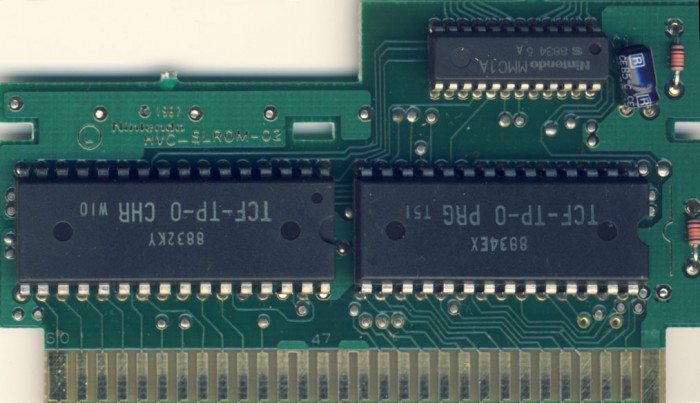

PCB Properties
| Name | HVC-SLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8814 - 8837 (6) |
| Est First Run | April 1988 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TCF-TP-0 PRG | 128 KB | 92873F0E | 6 |
| CHR0 | TCF-TP-0 CHR | 128 KB | 462F6575 | 6 |
| N/A | ROMs Combined | 256 KB | F3F1269D | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8834 EX | 8834 | ||
| NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8832 KY | 8832 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8834 5 A | 8834 |
