Release Info
| Catalog ID |
PNF-T2 (R55V5914) |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
March 18, 1988 |
| Publisher |
Pony Canyon |
| Developer |
Pony Canyon |
| Players |
1 |
| Peripherals |
Famicom Controller |

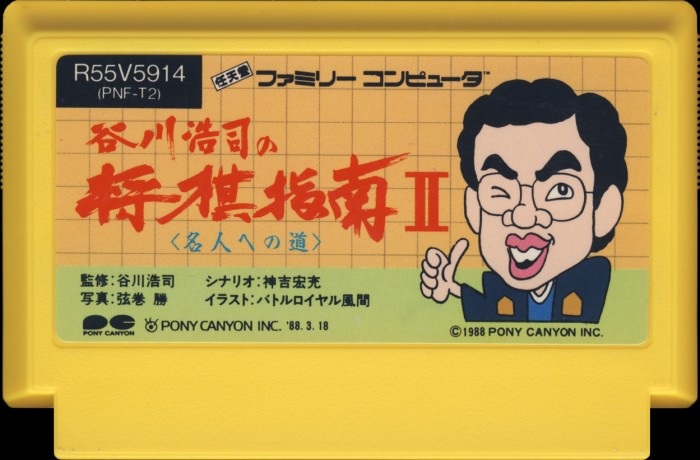

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Yellow |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
PNF-T2 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-SNROM-05 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8813 - 8817 (2) |
| Est First Run |
March 1988 |
| PCB Class |
HVC-SNROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1A |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
PNF-T2-0 PRG |
128 KB |
3836EEAC |
2 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG |
NEC |
UPD23C1010
|
Mask ROM
128 KB
|
DIP-28 |
8808
EX
|
8808 |
|
| CHR |
Sharp |
LH5264D4
|
SRAM
8 KB
|
DIP-28 |
8813
5 Y
|
8813 |
|
| MMC1 |
Sharp |
MMC1A
|
Nintendo MMC1
|
DIP-24 |
8813
A
|
8813 |
|
| W-RAM |
Sharp |
LH5164D3-L
|
SRAM
8 KB
|
DIP-28 |
8813
1 DA
|
8813 |
|
Additional Images
PCB Images
