Release Info
| Catalog ID | SQF-FF |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 18, 1987 |
| Publisher | Square |
| Developer | Square |
| Players | 1 |
| Peripherals | Famicom Controller |

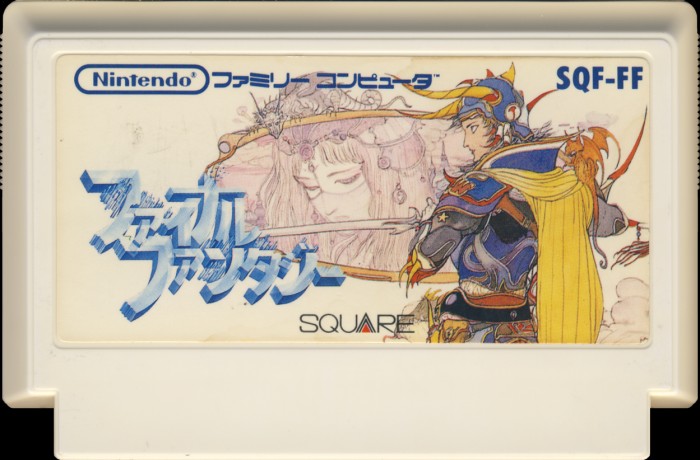

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SQF-FF |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |
PCB Properties
| Name | HVC-SNROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8748 - 9115 (4) |
| Est First Run | December 1987 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SQF-FF-0 PRG | 256 KB | 466EFDC2 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8747 KY | 8747 | |
| CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8745 M5 | 8745 | |
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8747 A | 8747 | ||
| Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8748 5 D | 8748 |
