Release Info
| Catalog ID | HVC-PP |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 15, 1983 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

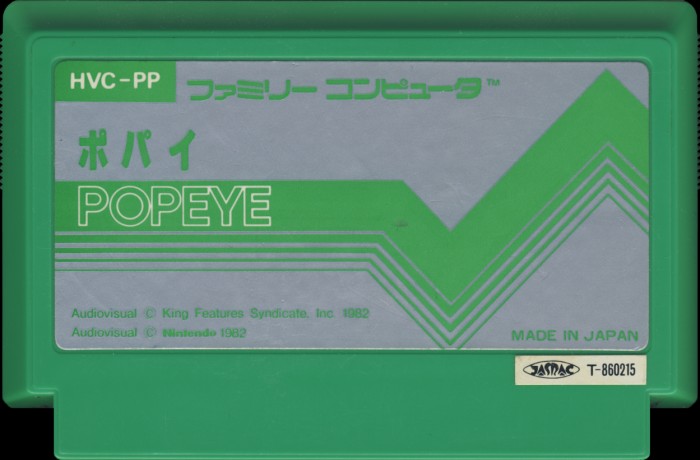

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Lime Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-PP |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

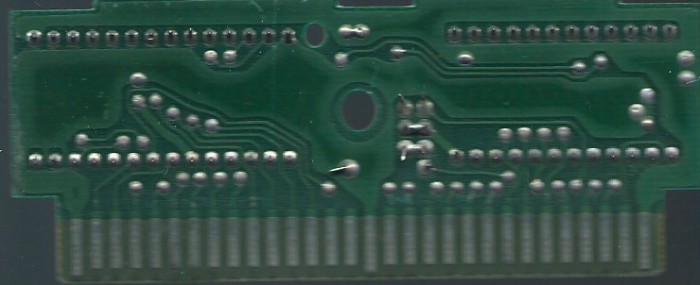

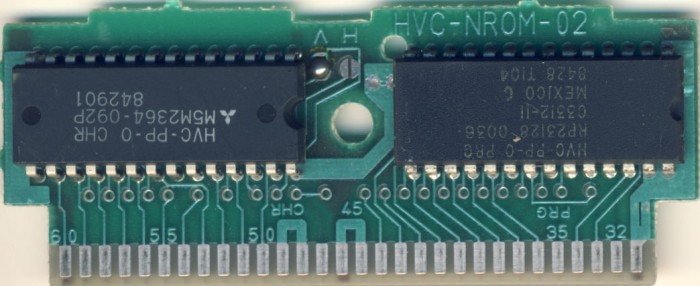

PCB Properties
| Name | HVC-NROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8429 - 8429 (2) |
| Est First Run | July 1984 |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-PP-0 PRG | 16 KB | F1FFD9F8 | 5 |
| CHR0 | HVC-PP-0 CHR | 8 KB | A5FD8D98 | 11 |
| N/A | ROMs Combined | 24 KB | 5581E835 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | _UnkRicohMexico | C3312 11 | Mask ROM 16 KB | DIP-28 | 8428 T104 | 8428 | RP23128 0036 |
| CHR | Mitsubishi | M5M2364 092P | Mask ROM 8 KB | DIP-28 | 8429 01 | 8429 |
