Release Info
| Catalog ID | TFS-PC |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 21, 1985 |
| Publisher | Toemiland |
| Developer | Shouei System |
| Players | 1 |
| Peripherals | Famicom Controller |

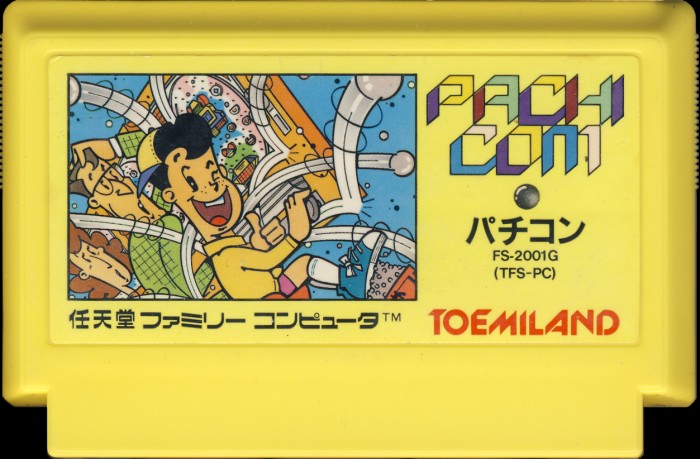

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Bright Yellow |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TFS-PC |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

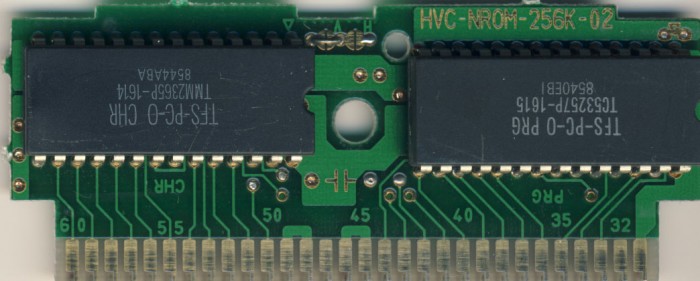

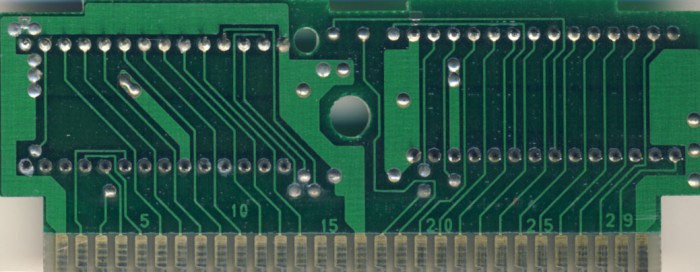

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8544 - 8544 (6) |
| Est First Run | November 1985 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TFS-PC-0 PRG | 32 KB | 106AF52A | 6 |
| CHR0 | TFS-PC-0 CHR | 8 KB | 9611C585 | 6 |
| N/A | ROMs Combined | 40 KB | E30B2BCF | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Toshiba | TC53257P 1615 | Mask ROM 32 KB | DIP-28 | 8540 EBI | 8540 | |
| CHR | Toshiba | TMM2365P 1614 | Mask ROM 8 KB | DIP-28 | 8544 ABA | 8544 |
