Release Info
| Catalog ID | HSP-32 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 9, 1990 |
| Publisher | ASCII |
| Developer | Sir-Tech Software |
| Players | 1 |
| Peripherals | ,Famicom Controller |

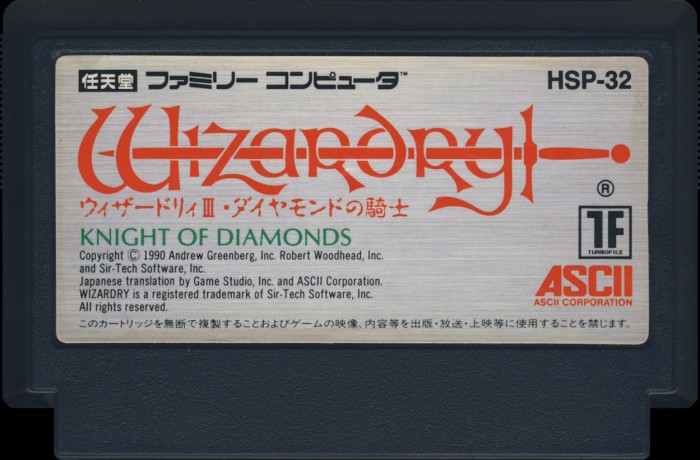

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-32 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

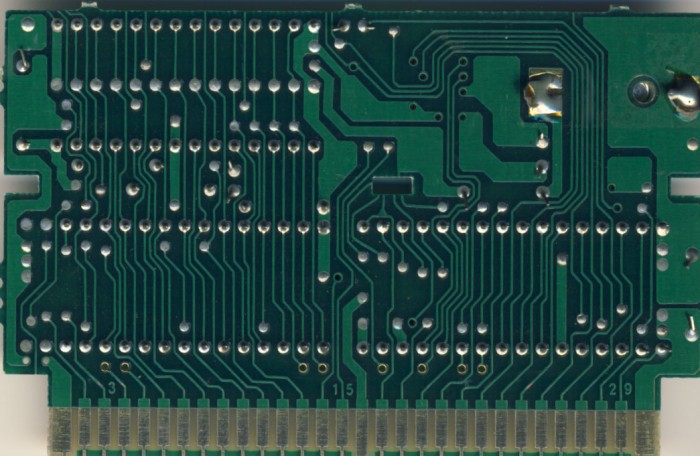

PCB Properties
| Name | HVC-TKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8950 - 8951 (4) |
| Est First Run | December 1989 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-32-0 PRG | 128 KB | 33D07E45 | 4 |
| CHR0 | HSP-32-0 CHR | 128 KB | 42E371DB | 4 |
| N/A | ROMs Combined | 256 KB | 5C123EF7 | 4 |

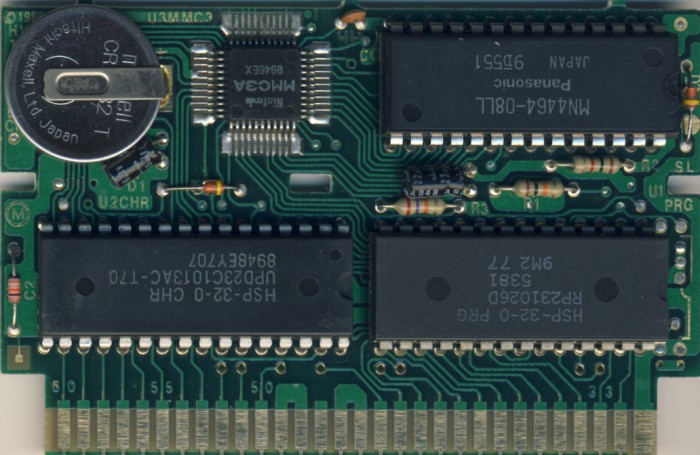

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5381 | Mask ROM 128 KB | DIP-28 | 9M2 77 | 8950 | |
| U2 CHR | NEC | UPD23C1013AC T70 | Mask ROM 128 KB | DIP-32 | 8948 EY707 | 8948 | |
| U3 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8946 EX | 8946 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 9 51 | 8949 |
