Release Info
| Catalog ID | CBF-4N |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 21, 1991 |
| Publisher | Culture Brain |
| Developer | Culture Brain |
| Players | 1 |
| Peripherals | Famicom Controller |

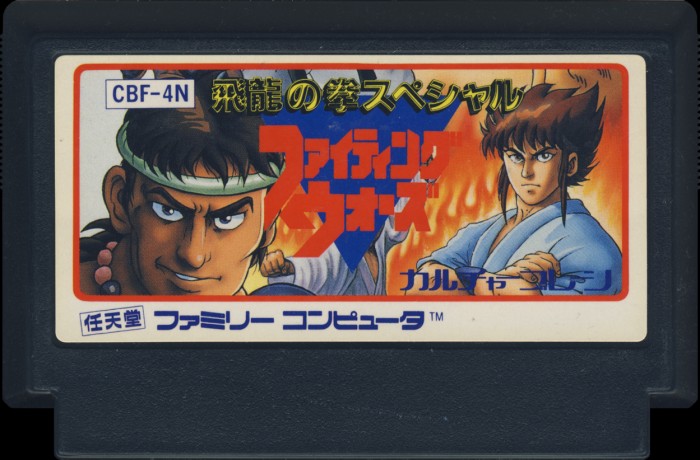

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CBF-4N |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

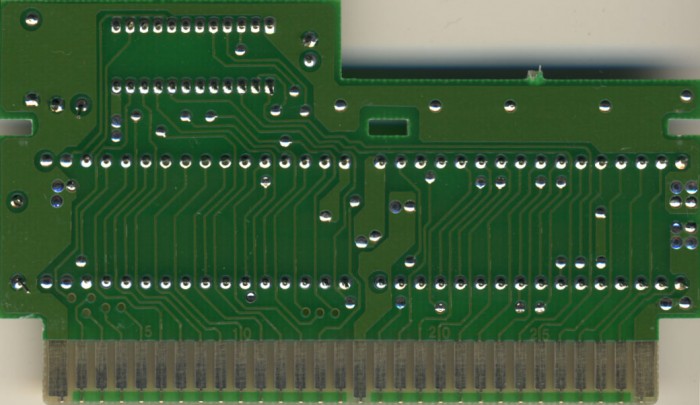

PCB Properties
| Name | HVC-SLRROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9120 - 9121 (4) |
| Est First Run | May 1991 |
| PCB Class | HVC-SLRROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CBF-4N-0 PRG | 128 KB | 38A02977 | 4 |
| CHR0 | CBF-4N-0 CHR | 128 KB | 31244F96 | 4 |
| N/A | ROMs Combined | 256 KB | 07977186 | 4 |

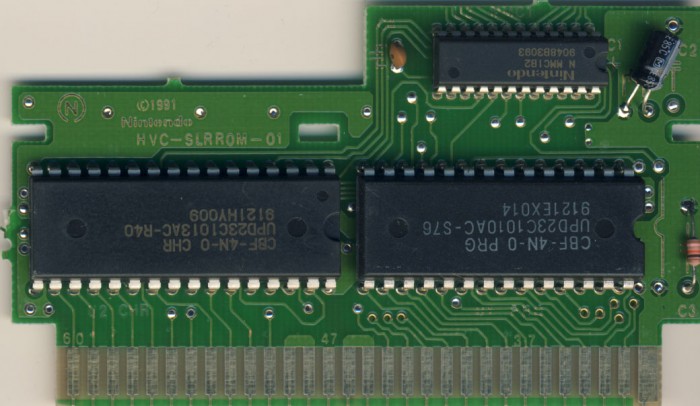

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S76 | Mask ROM 128 KB | DIP-28 | 9121 EX014 | 9121 | |
| U2 CHR | NEC | UPD23C1013AC R40 | Mask ROM 128 KB | DIP-32 | 9121 HY009 | 9121 | |
| U3 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9048 B3093 | 9048 |
