Release Info
| Catalog ID | TCF-WC |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 7, 1990 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 2 |
| Peripherals | Famicom Controller |

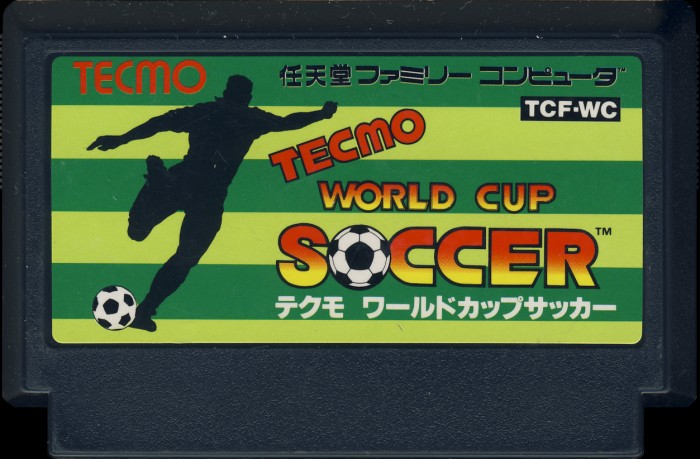

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TCF-WC |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

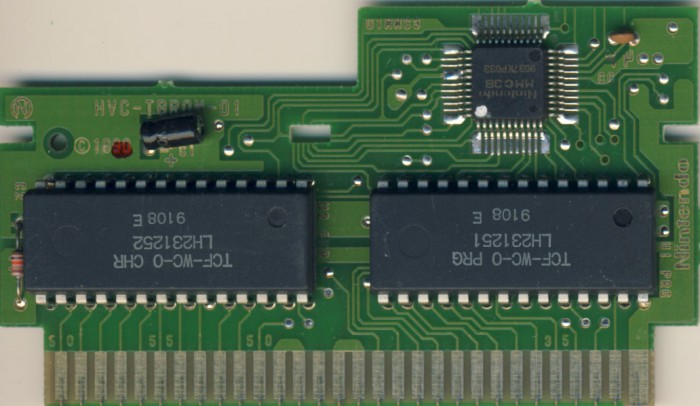

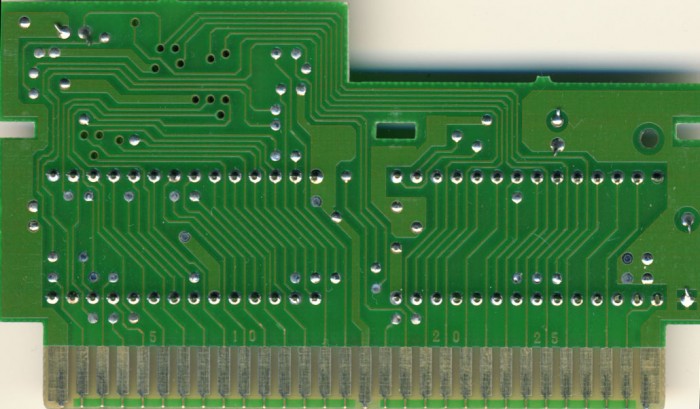

PCB Properties
| Name | HVC-TBROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9108 - 9108 (2) |
| Est First Run | February 1991 |
| PCB Class | HVC-TBROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TCF-WC-0 PRG | 64 KB | 22F1CA9E | 2 |
| CHR0 | TCF-WC-0 CHR | 64 KB | 6D3AD901 | 2 |
| N/A | ROMs Combined | 128 KB | 8A5BC0D3 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2312 51 | Mask ROM 64 KB | DIP-28 | 9108 E | 9108 | |
| U2 CHR | Sharp | LH2312 52 | Mask ROM 64 KB | DIP-28 | 9108 E | 9108 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9037 KP033 | 9037 |
