Release Info
| Catalog ID | PNF-S9 (R59V5923) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 9, 1989 |
| Publisher | Pony Canyon |
| Developer | Nichibutsu |
| Players | 2 |
| Peripherals | Famicom Controller |

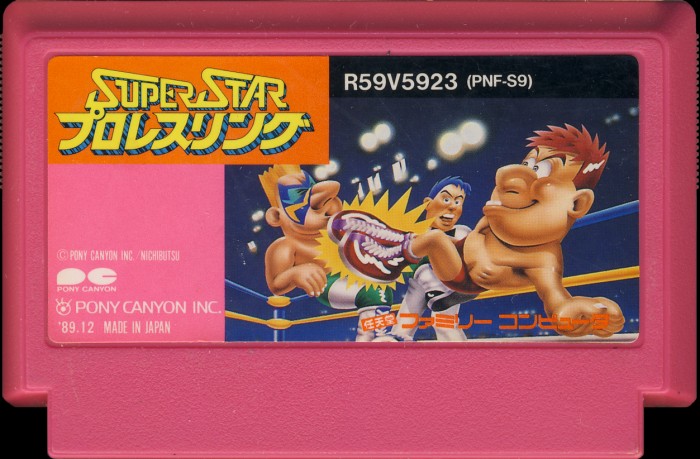

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Pink |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | PNF-S9 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

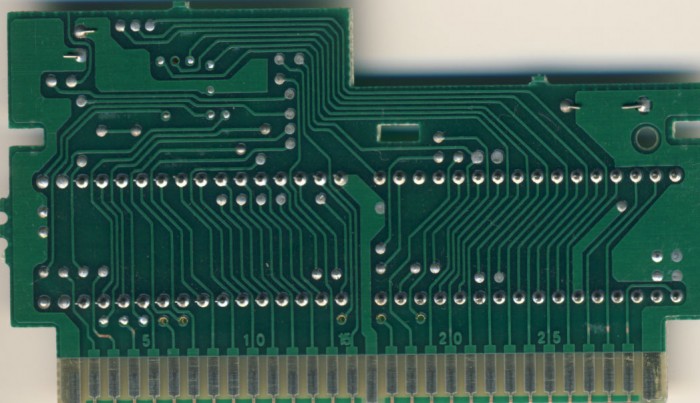

PCB Properties
| Name | HVC-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8941 - 8943 (2) |
| Est First Run | October 1989 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PNF-S9-0 PRG | 128 KB | 0A1BCD91 | 2 |
| CHR0 | PNF-S9-0 CHR | 128 KB | 9F0BDECF | 2 |
| N/A | ROMs Combined | 256 KB | 705BD7C3 | 2 |

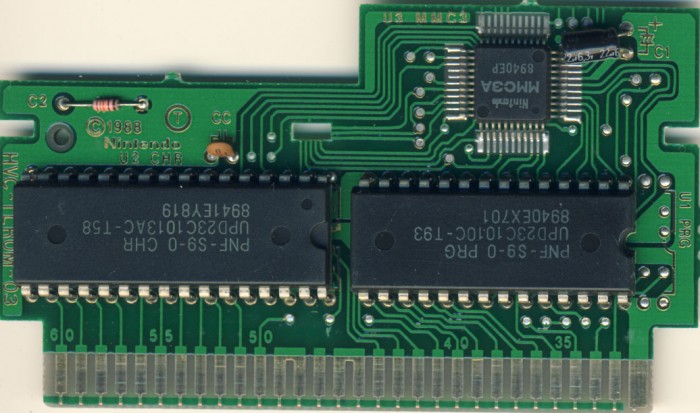

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010C T93 | Mask ROM 128 KB | DIP-28 | 8940 EX701 | 8940 | |
| U2 CHR | NEC | UPD23C1013AC T58 | Mask ROM 128 KB | DIP-32 | 8941 EY819 | 8941 | |
| U3 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8940 EP | 8940 |
