Release Info
| Catalog ID | CAM-US |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1991 |
| Publisher | Camerica |
| Developer | Codemasters |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Camerica |
|---|---|
| Color | Gold |
| Form Factor | NES Cart |

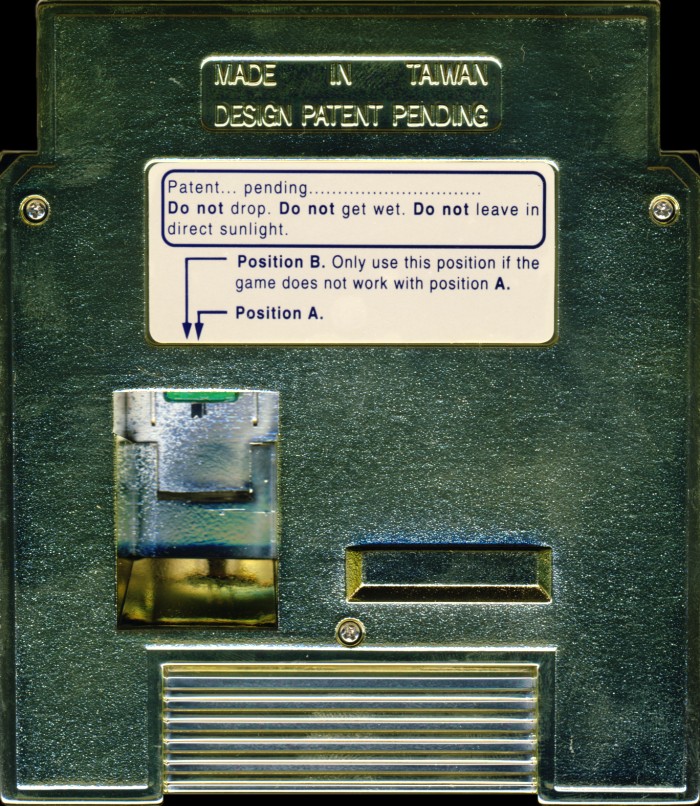

| Embossed Text | Made in Taiwan Design Patent Pending |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | BIC-43 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9140 - 9140 (2) |
| Est First Run | October 1991 |
| PCB Class | CAMERICA-BF9093 |
| iNES Mapper | 71 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | CIC Stun |
| Hardware | BF9093 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | US095 | 256 KB | 892434DD | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Hyundai | BF9093 | Camerica BF9093 | DIP-20 | 9140 T | 9140 | |
| U2 | Hyundai | HY232000 | Mask ROM 256 KB | DIP-32 | |||
| U4 | Hyundai | HY6264J-15 | SRAM 8 KB | SOP-28 | 8946 SB | 8946 |
