Release Info
| Catalog ID | SHI-3G |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 22, 1990 |
| Publisher | Yutaka |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

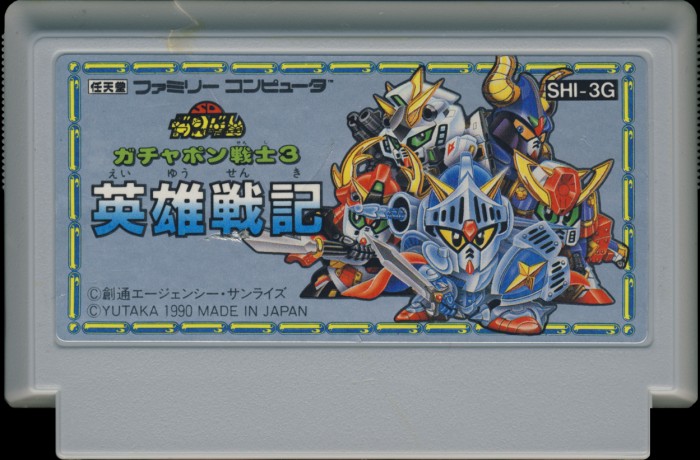

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Blue-Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SHI-3G |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

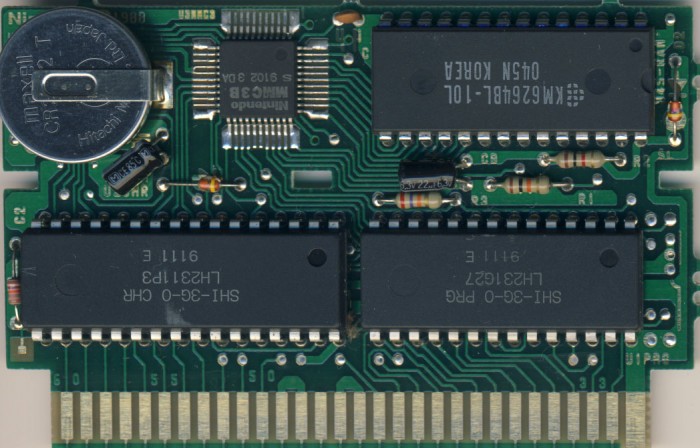

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9044 - 9111 (4) |
| Est First Run | November 1990 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHI-3G-0 PRG | 128 KB | 66B2DEC7 | 4 |
| CHR0 | SHI-3G-0 CHR | 128 KB | B86E4C1E | 4 |
| N/A | ROMs Combined | 256 KB | 1066B66D | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 27 | Mask ROM 128 KB | DIP-28 | 9111 E | 9111 | |
| U2 CHR | Sharp | LH2311 P3 | Mask ROM 128 KB | DIP-32 | 9111 E | 9111 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9102 3 DA | 9102 | |
| U4 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 045 N | 9045 |
