Release Info
| Catalog ID | HVC-MT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 14, 1992 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

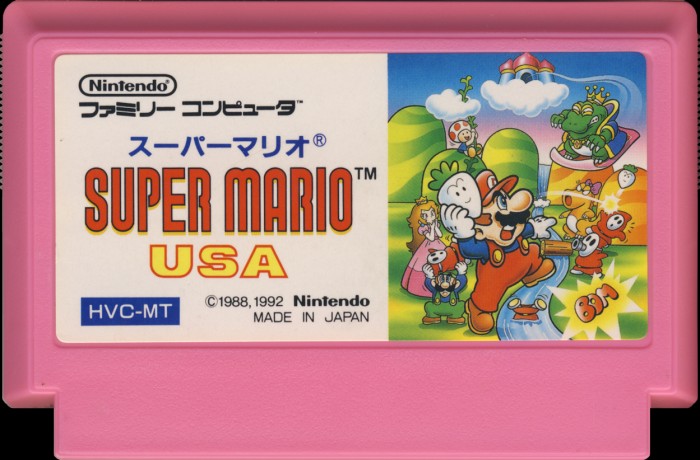

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Pink |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-MT |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

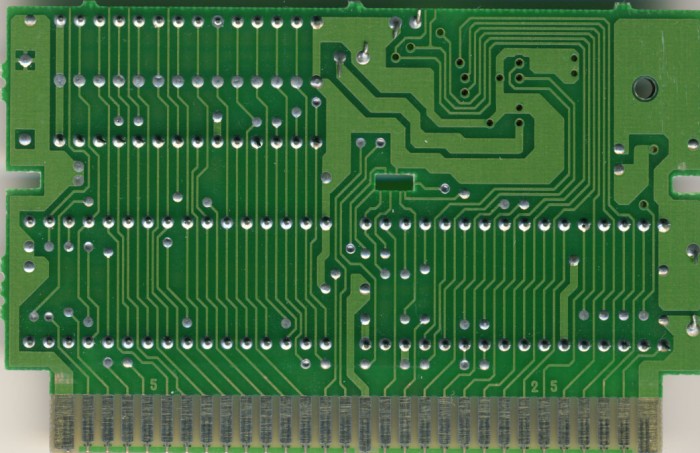

PCB Properties
| Name | HVC-TSROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9231 - 9306 (5) |
| Est First Run | August 1992 |
| PCB Class | HVC-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-MT-0 PRG | 128 KB | C283E72D | 5 |
| CHR0 | HVC-MT-0 CHR | 128 KB | CE6E51D3 | 5 |
| N/A | ROMs Combined | 256 KB | 80FB7E6B | 5 |

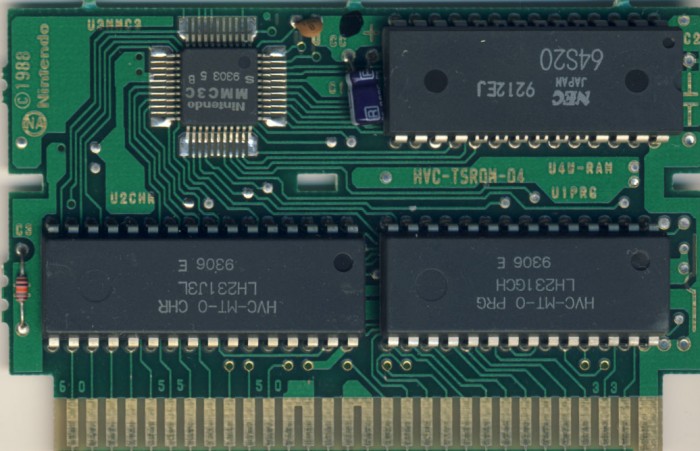

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G CH | Mask ROM 128 KB | DIP-28 | 9306 E | 9306 | |
| U2 CHR | Sharp | LH231J 3L | Mask ROM 128 KB | DIP-32 | 9306 E | 9306 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9303 5 B | 9303 | |
| U4 W-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9212 EJ | 9212 |
