Release Info
| Catalog ID | HFC-LR |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 31, 1984 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 2 |
| Peripherals | Famicom Controller |

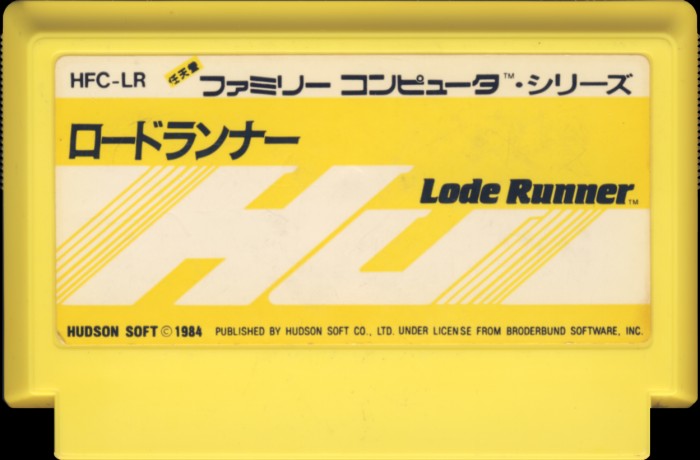

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Bright Yellow |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HFC-LR |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

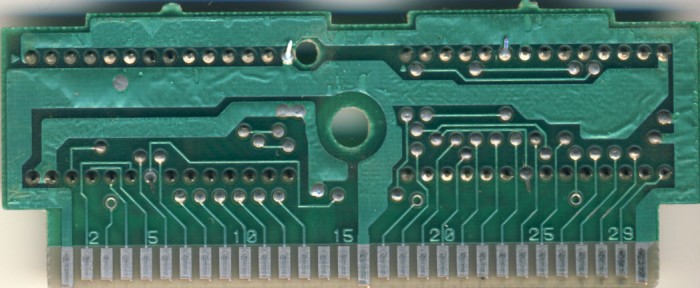

PCB Properties
| Name | HVC-RROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8445 - 8451 (4) |
| Est First Run | November 1984 |
| PCB Class | HVC-RROM |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-LR-0 PRG | 16 KB | 85534474 | 4 |
| CHR0 | HVC-LR-0 CHR | 8 KB | E8C6C127 | 7 |
| N/A | ROMs Combined | 24 KB | 0A3FC393 | 4 |

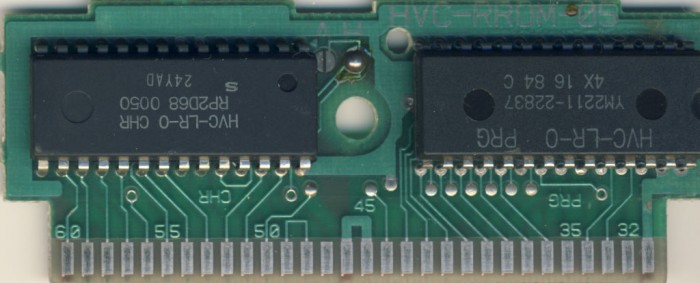

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Yamaha | YM2211 22837 | Mask ROM 16 KB | DIP-28 | 4X 16 84 C | 8442 | |
| CHR | Sharp | RP2D68 0050 | Mask ROM 8 KB | DIP-28 | 4YA 2 | 8445 |
