Release Info
| Catalog ID |
SQF-FC |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
April 27, 1990 |
| Publisher |
Square |
| Developer |
Square |
| Players |
1 |
| Peripherals |
Famicom Controller |

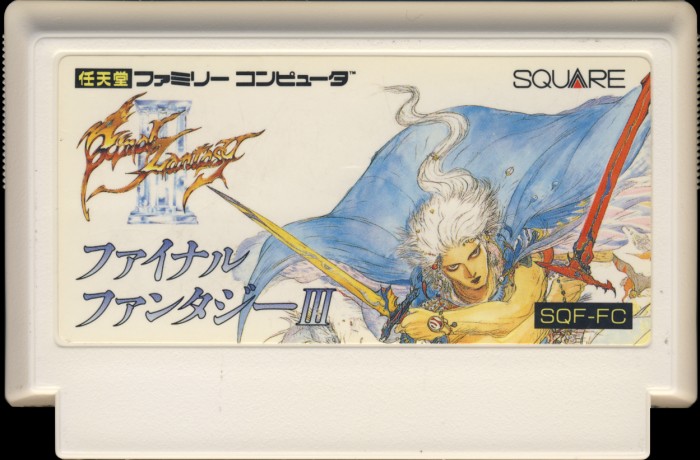

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
White |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
SQF-FC |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
09 |
PCB Properties
| Name |
HVC-TNROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9011 - 9019 (10) |
| Est First Run |
March 1990 |
| PCB Class |
HVC-TNROM |
| iNES Mapper |
4 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC3B |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
SQF-FC-0 PRG |
512 KB |
57E220D0 |
10 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Sharp |
LH534J
03
|
Mask ROM
512 KB
|
DIP-32 |
9009
D
|
9009 |
|
| U2 CHR-RAM |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
9001
MX
|
9001 |
|
| U3 MMC3 |
Sharp |
MMC3B
|
Nintendo MMC3
|
TQFP-44 |
9012
3 DA
|
9012 |
|
| U4 W-RAM |
Panasonic |
MN4464-08LL
|
SRAM
8 KB
|
DIP-28 |
9N6
51
|
8946 |
|
Additional Images
PCB Images
