Release Info
| Catalog ID | HVC-KI |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 23, 1993 |
| Publisher | Nintendo |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | Famicom Controller |

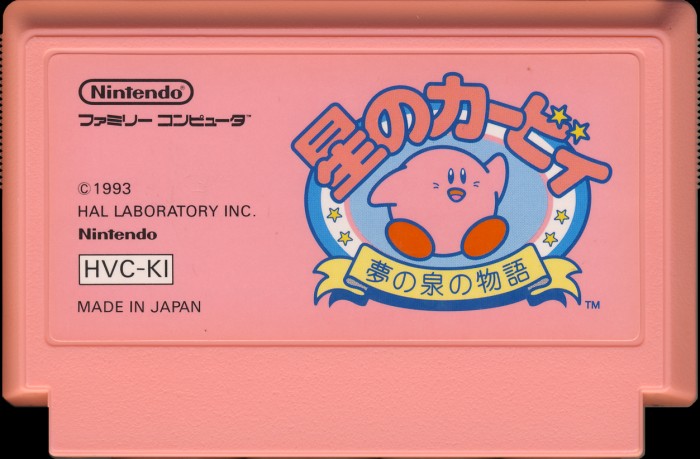

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Pink |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-KI |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

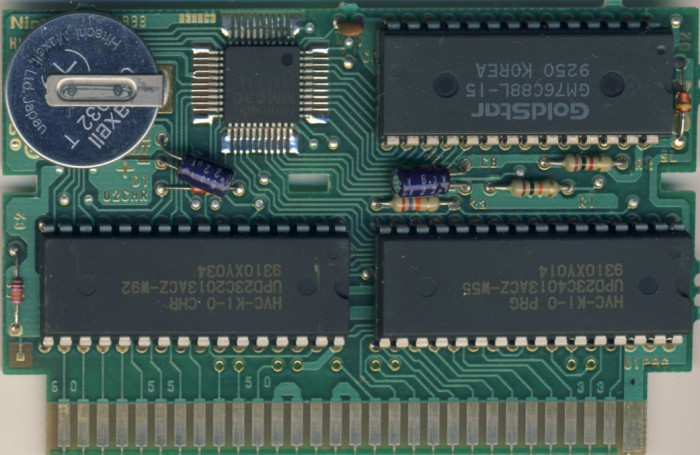

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9310 - 9312 (4) |
| Est First Run | March 1993 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-KI-0 PRG | 512 KB | 6CC62C06 | 4 |
| CHR0 | HVC-KI-0 CHR | 256 KB | CFD0615F | 4 |
| N/A | ROMs Combined | 768 KB | E4A7D436 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C4013ACZ W55 | Mask ROM 512 KB | DIP-32 | 9310 XY014 | 9310 | |
| U2 CHR | NEC | UPD23C2013ACZ W92 | Mask ROM 256 KB | DIP-32 | 9310 XY034 | 9310 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9307 1 A | 9307 | |
| U4 W-RAM | GoldStar | GM76C88-15 | SRAM 8 KB | DIP-28 | 9250 | 9250 |
