Release Info
| Catalog ID | KKS-MC (02) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 14, 1987 |
| Publisher | Seta |
| Developer | Random House |
| Players | 1 |
| Peripherals | Famicom Controller |

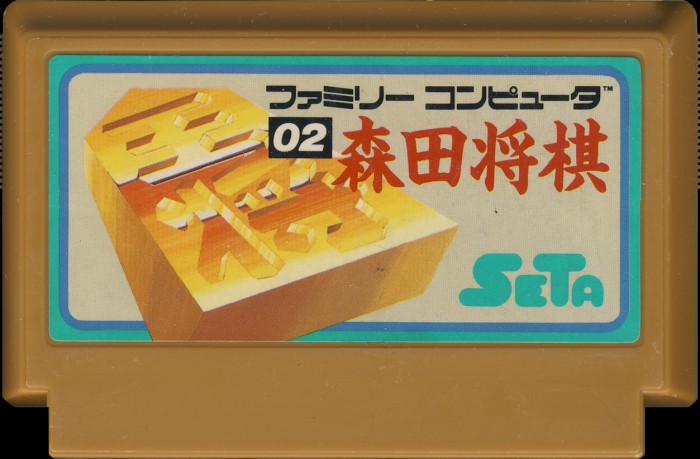

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Gold |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 02 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 05 |

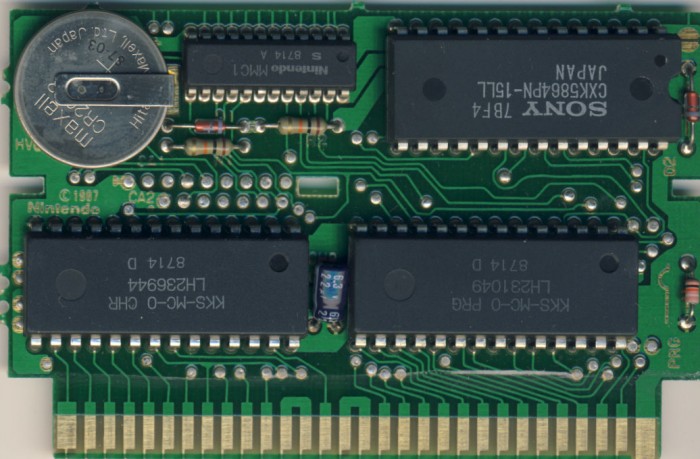

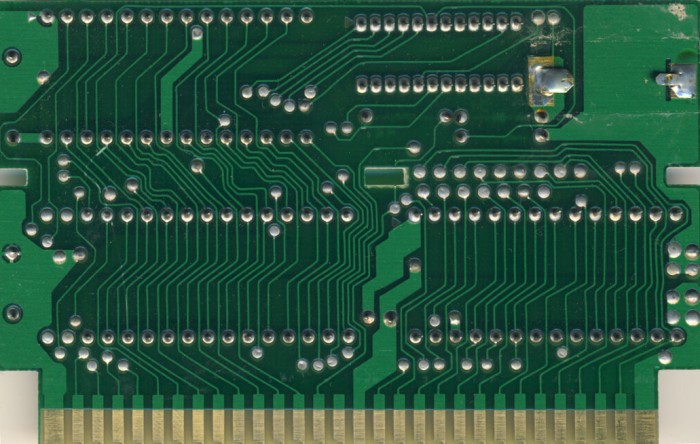

PCB Properties
| Name | HVC-SNROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8713 - 8714 (2) |
| Est First Run | March 1987 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KKS-MC-0 PRG | 128 KB | EC47296D | 2 |
| CHR0 | KKS-MC-0 CHR | 8 KB | 78862947 | 2 |
| N/A | ROMs Combined | 136 KB | 9E356267 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2310 49 | Mask ROM 128 KB | DIP-28 | 8714 D | 8714 | |
| CHR | Sharp | LH2369 44 | Mask ROM 8 KB | DIP-28 | 8714 D | 8714 | |
| Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8714 A | 8714 | ||
| Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 7B F4 | 8705 |
