Release Info
| Catalog ID | NES-MH-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Multi-cart |
| Release Date | November 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller,Zapper Light Gun |

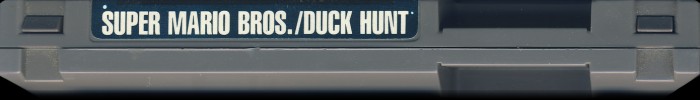

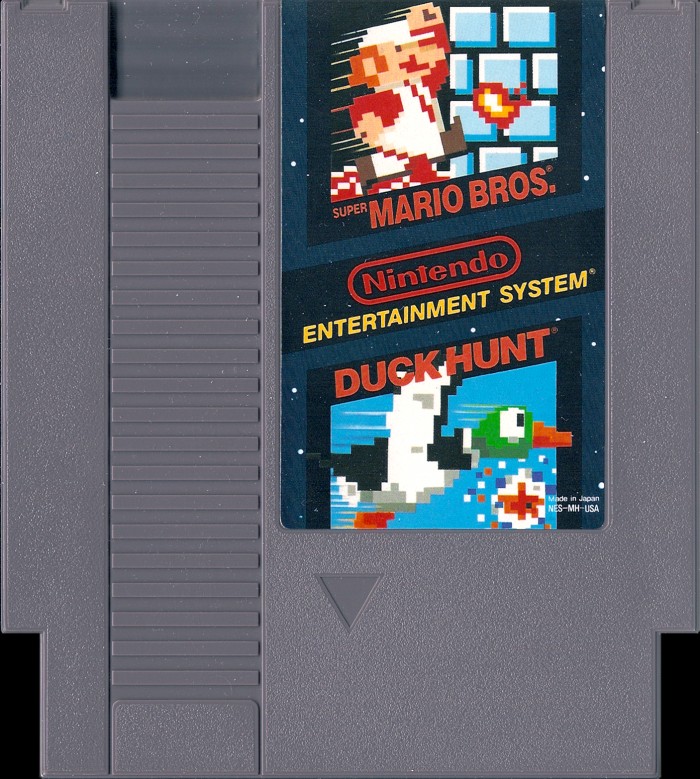

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MH-USA |
| Seal of Quality | None |
| MfgString Present | Yes |
| 2-digit Code | 07 |

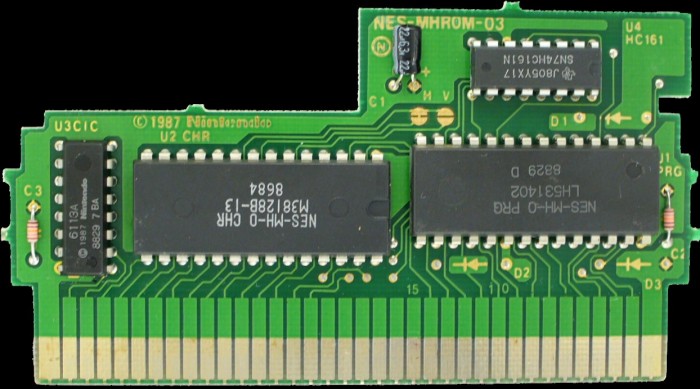

PCB Properties
| Name | NES-MHROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8803 - 9112 (8) |
| Est First Run | January 1988 |
| PCB Class | NES-MHROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-MH-0 PRG | 64 KB | 81069812 | 13 |
| CHR0 | NES-MH-0 CHR | 16 KB | 7ECDA8B3 | 15 |
| N/A | ROMs Combined | 80 KB | D26EFD78 | 13 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5314 02 | Mask ROM 64 KB | DIP-28 | 8829 D | 8829 | |
| U2 CHR | OKI | M38128B 13 | Mask ROM 16 KB | DIP-28 | 86 84 | 8822 | |
| U3 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8829 7 BA | 8829 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 805 J | 8805 |
