Release Info
| Catalog ID | HSP-46 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 21, 1991 |
| Publisher | ASCII |
| Developer | ASCII |
| Players | 1 |
| Peripherals | Famicom Controller |

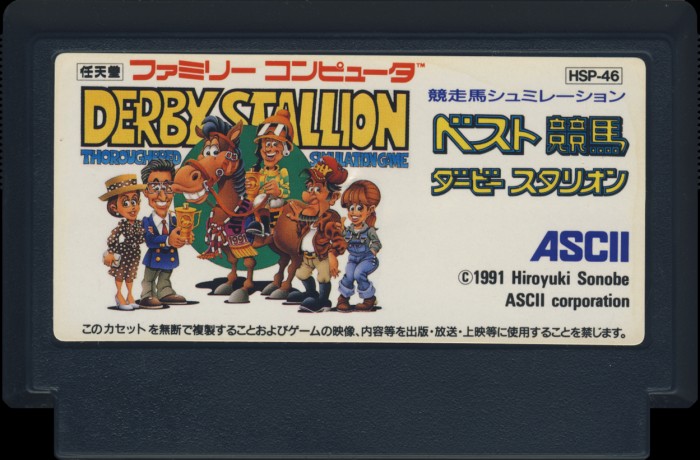

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-46 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

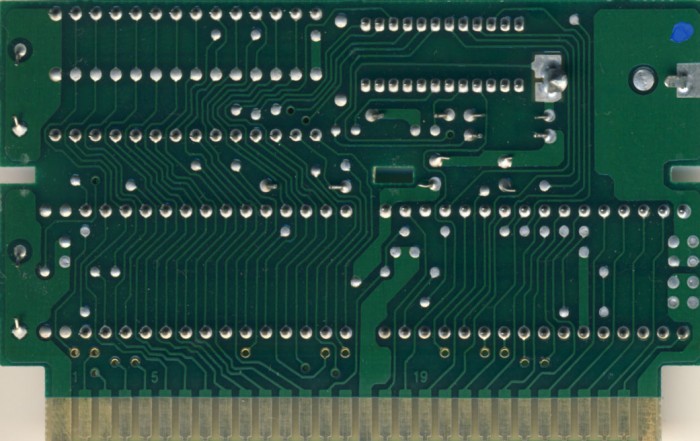

PCB Properties
| Name | HVC-SKROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9207 - 9219 (4) |
| Est First Run | February 1992 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-46-1 PRG | 128 KB | 9C94A0EC | 4 |
| CHR0 | HSP-46-0 CHR | 128 KB | 3EF776BD | 4 |
| N/A | ROMs Combined | 256 KB | 83EAF3B1 | 4 |

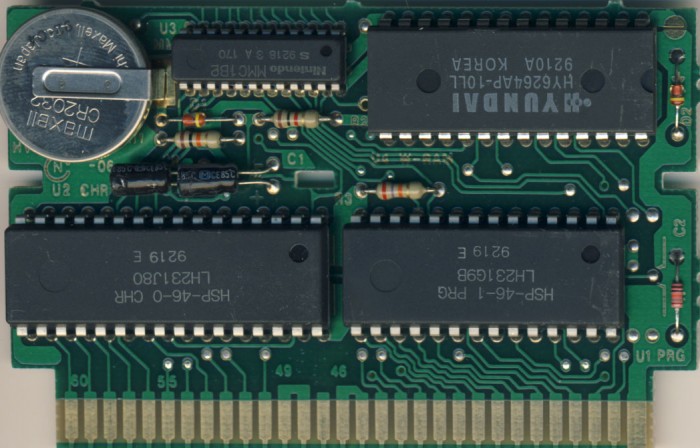

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 9B | Mask ROM 128 KB | DIP-28 | 9219 E | 9219 | |
| U2 CHR | Sharp | LH231J 80 | Mask ROM 128 KB | DIP-32 | 9219 E | 9219 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9218 3 A 170 | 9218 | |
| U4 W-RAM | Hyundai | HY6264AP-10LL | SRAM 8 KB | DIP-28 | 9210 A | 9210 |
