Release Info
| Catalog ID | SQF-TX |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 19, 1985 |
| Publisher | Square |
| Developer | Game Arts |
| Players | 1 |
| Peripherals | Famicom Controller |

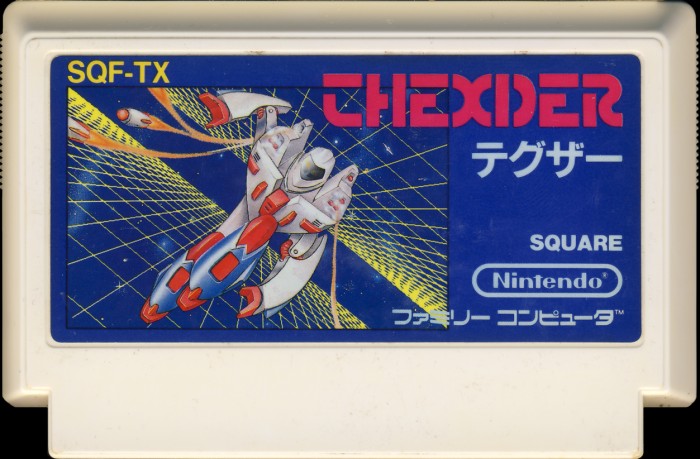

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SQF-TX |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

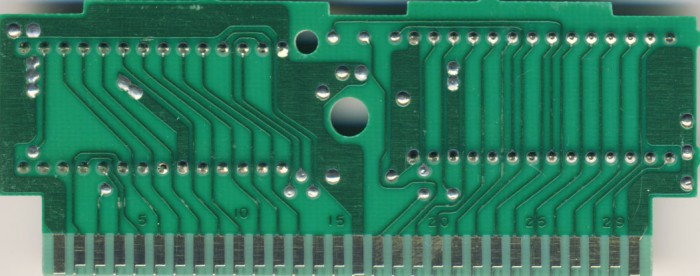

PCB Properties
| Name | HVC-NROM-256K-02S |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8549 - 8549 (2) |
| Est First Run | December 1985 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SQF-TX-0 PRG | 32 KB | E73F60DC | 2 |
| CHR0 | SQF-TX-0 CHR | 8 KB | 473FE2CF | 2 |
| N/A | ROMs Combined | 40 KB | 06F15215 | 2 |

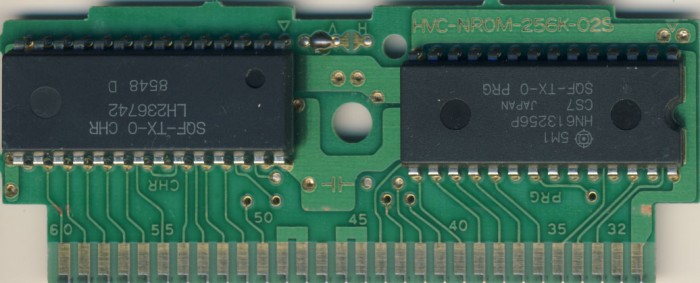

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Hitachi | HN613256P CS7 | Mask ROM 32 KB | DIP-28 | 5M1 | 8549 | |
| CHR | Sharp | LH2367 42 | Mask ROM 8 KB | DIP-28 | 8548 D | 8548 |
