Release Info
| Catalog ID | KAC-KQ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 6, 1989 |
| Publisher | KAC |
| Developer | |
| Players | 2 |
| Peripherals | Famicom Controller |

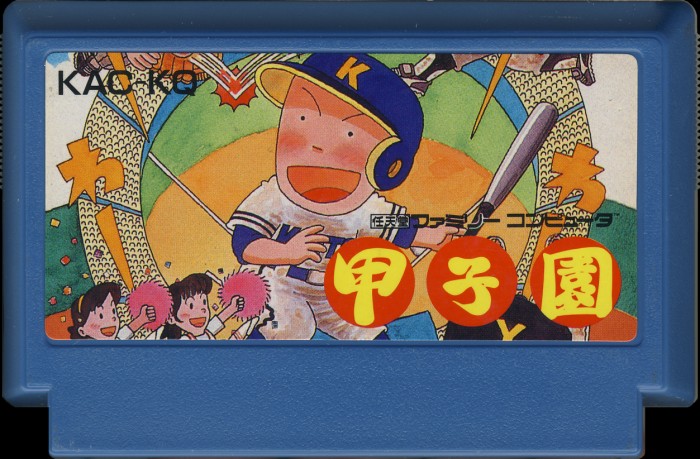

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Cornflower Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KAC-KQ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

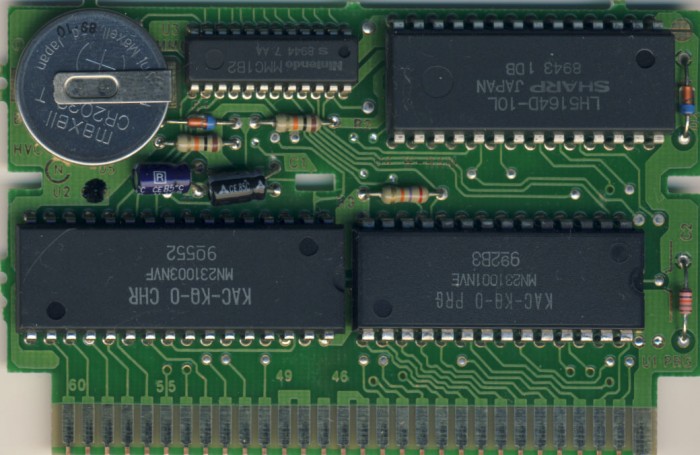

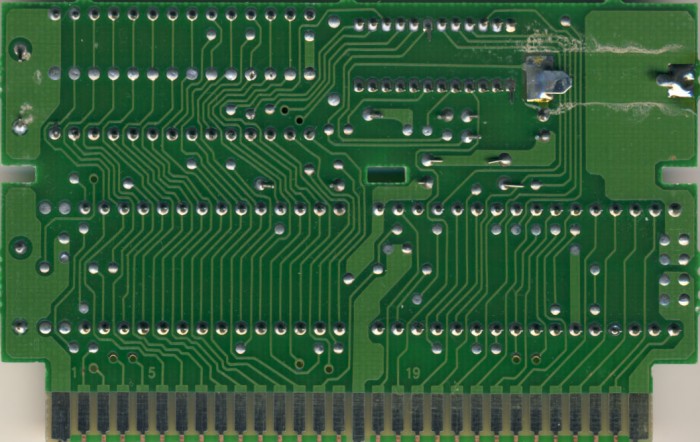

PCB Properties
| Name | HVC-SKROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8937 - 8944 (3) |
| Est First Run | September 1989 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KAC-KQ-0 PRG | 128 KB | A817D175 | 3 |
| CHR0 | KAC-KQ-0 CHR | 128 KB | 8388B1EF | 3 |
| N/A | ROMs Combined | 256 KB | 83CB743F | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NVE | Mask ROM 128 KB | DIP-28 | 9 B3 | 8938 | |
| U2 CHR | Panasonic | MN231003 NVF | Mask ROM 128 KB | DIP-32 | 9 52 | 8943 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8944 7 AA | 8944 | |
| U4 W-RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 8943 1 DB | 8943 |
