Release Info
| Catalog ID | BPS-T0 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 22, 1988 |
| Publisher | Bullet-Proof Software |
| Developer | Bullet-Proof Software |
| Players | 1 |
| Peripherals | Famicom Controller |

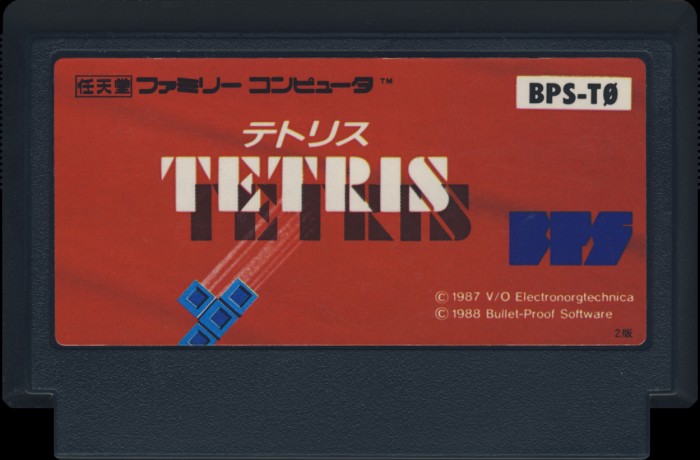

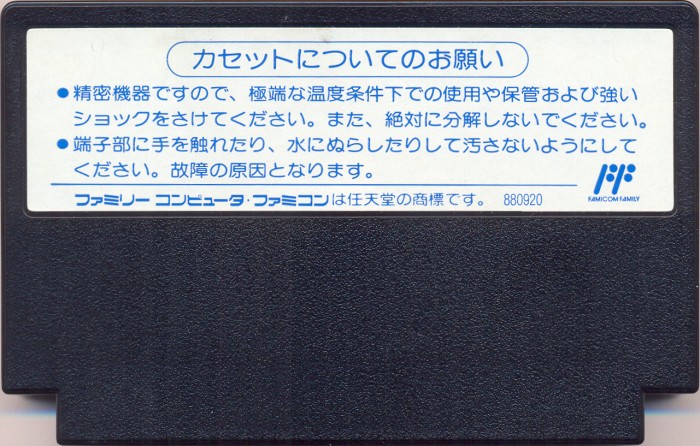

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | BPS-T0 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17 |

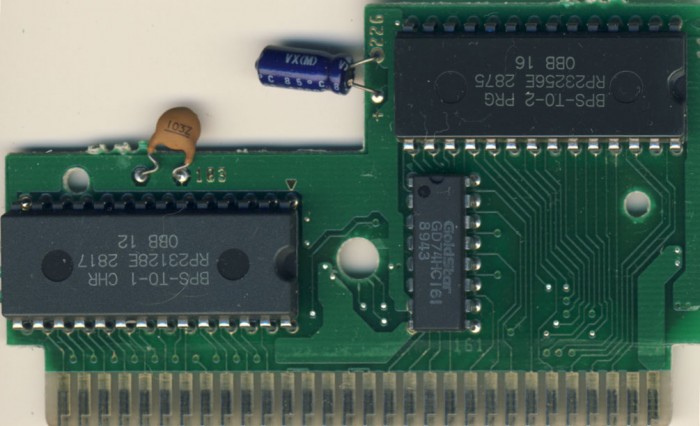

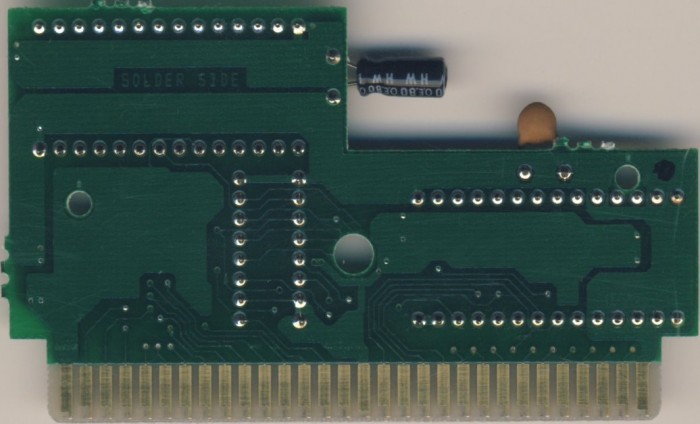

PCB Properties
| Name | UNK-BPS-T0 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8926 - 9043 (10) |
| Est First Run | June 1989 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BPS-T0-2 PRG | 32 KB | 77117299 | 6 |
| CHR0 | BPS-T0-1 CHR | 16 KB | A4896EEF | 10 |
| N/A | ROMs Combined | 48 KB | 5C5A1AB8 | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP23256E 2875 | Mask ROM 32 KB | DIP-28 | 0BB 16 | 9005 | |
| CHR | Ricoh | RP23128E 2817 | Mask ROM 16 KB | DIP-28 | 0BB 12 | 9005 | |
| 161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 8943 | 8943 |
