Release Info
| Catalog ID | VAP-BG |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 30, 1988 |
| Publisher | Vap |
| Developer | Pax Softnica |
| Players | 2 |
| Peripherals | Famicom Controller |

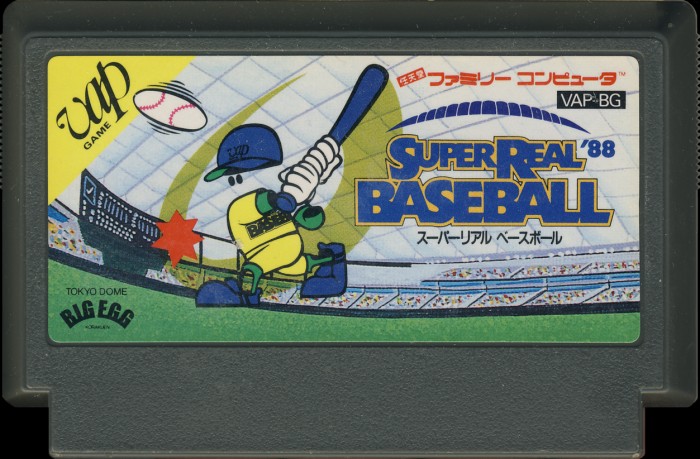

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Olive Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | VAP-BG |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

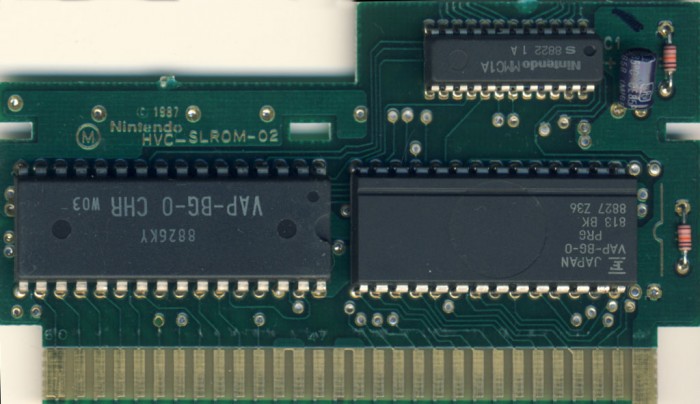

PCB Properties
| Name | HVC-SLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8827 - 8828 (3) |
| Est First Run | July 1988 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | VAP-BG-0 PRG | 128 KB | 1A3F1F1C | 3 |
| CHR0 | VAP-BG-0 CHR | 128 KB | D3105525 | 3 |
| N/A | ROMs Combined | 256 KB | D175B0CB | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8827 Z36 | 8827 | ||
| NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8826 KY | 8826 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8822 1 A | 8822 |
