Release Info
| Catalog ID | NES-OE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1989 |
| Publisher | Milton Bradley |
| Developer | Electronic Arts |
| Players | 2 |
| Peripherals | NES Controller |

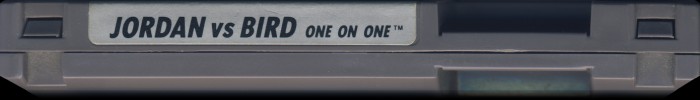

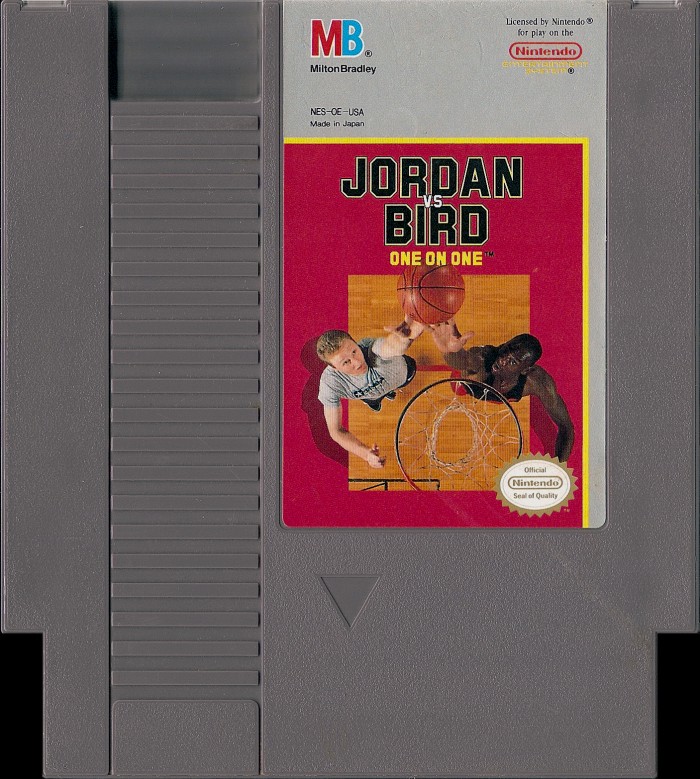

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-OE-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 08 |
PCB Properties
| Name | NES-UNROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8931 |
| Est First Run | August 1989 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-OE-0 PRG | 128 KB | 303D4371 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5333 | Mask ROM 128 KB | DIP-28 | 9G3 79 | 8929 | |
| U2 CHR RAM | OKI | M5165AL-12 | SRAM 8 KB | DIP-28 | 94 3007 | 8913 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8931 3 BA | 8931 | |
| U4 HC161 | Motorola | MC74HC161A | 74-161 Series | DIP-16 | 8918 N A | 8918 | |
| U5 HC32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | H23 | 8823 |
