Release Info
| Catalog ID | TFC-PK |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 17, 1992 |
| Publisher | Takara |
| Developer | Takara |
| Players | 1 |
| Peripherals | Famicom Controller |

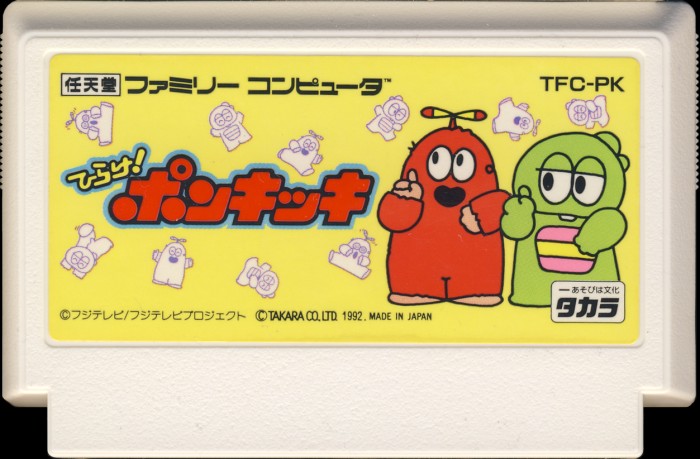

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TFC-PK |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17 |

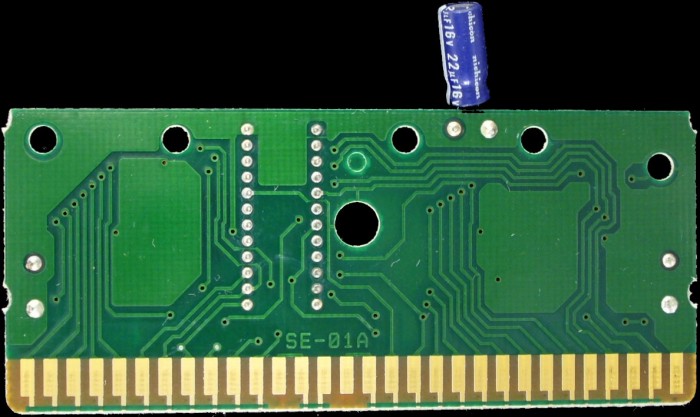

PCB Properties
| Name | SE-01A |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | 9202 |
| Est First Run | January 1992 |
| PCB Class | HVC-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 772513F4 | 1 |
| CHR0 | Not Present | 32 KB | CB04A0DE | 1 |
| N/A | ROMs Combined | 64 KB | 64BD6CDB | 1 |

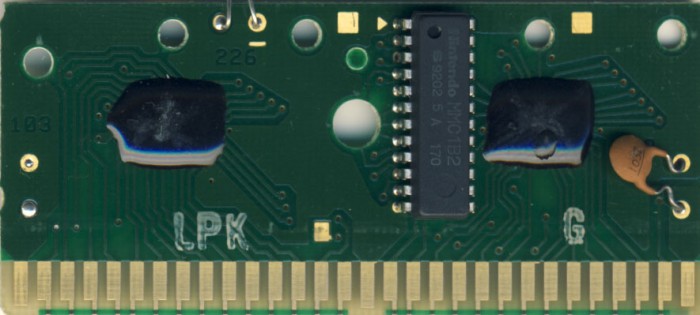

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | _UnkMfg17 | LPK | Chip-on-Board PCB | PCB | G | ||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9202 5 A | 9202 |
