Release Info
| Catalog ID | NES-WF-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1988 |
| Publisher | GameTek |
| Developer | Rare |
| Players | 3 |
| Peripherals | NES Controller |

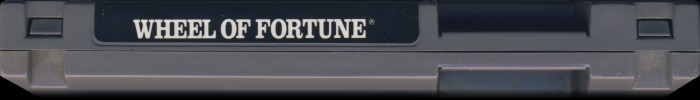

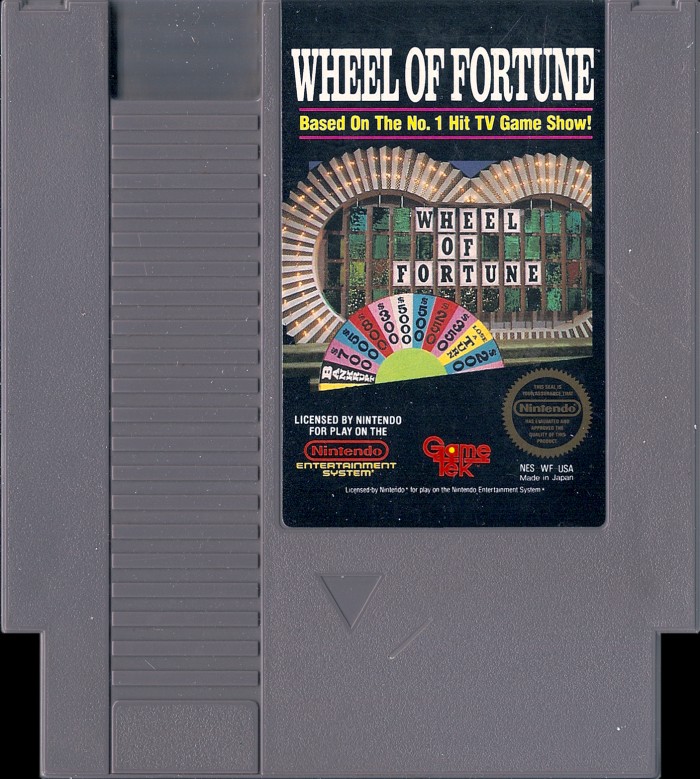

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-WF-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-AOROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8903 - 9013 (2) |
| Est First Run | January 1989 |
| PCB Class | NES-AOROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-WF-0 PRG | 128 KB | FBF8A785 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG ROM | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8851 KY | 8851 | |
| U2 CHR ROM | Sony | CXK5864BP-12L | SRAM 8 KB | DIP-28 | 8L 37 | 8848 | |
| U3 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 842 EN | 8842 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8903 5 CA | 8903 |
