Release Info
| Catalog ID | HFC-CH |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 15, 1985 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Famicom Controller |

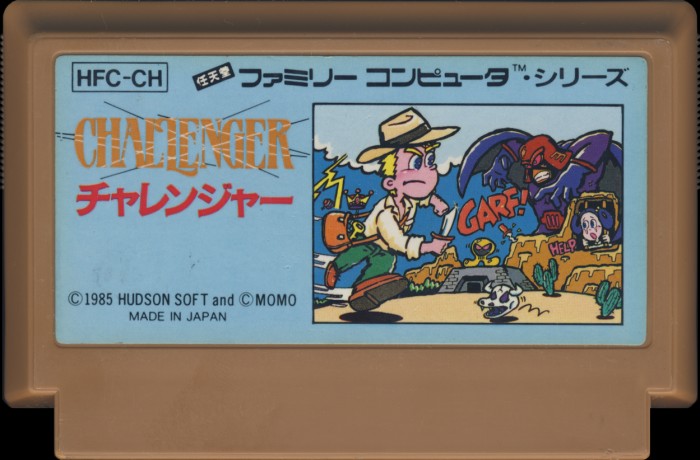

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Brown |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HFC-CH |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 02 |

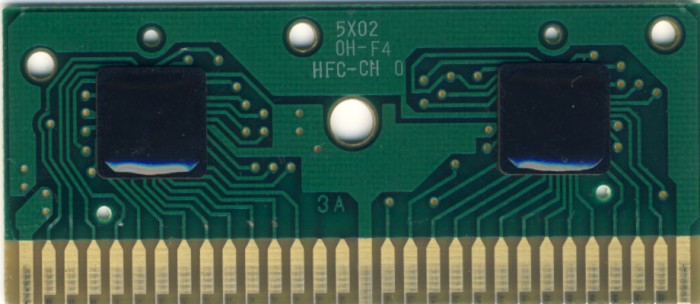

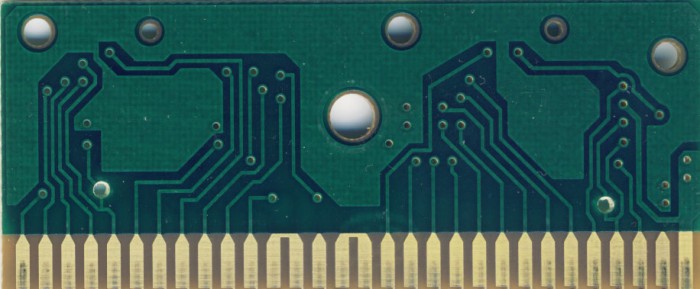

PCB Properties
| Name | 3A |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | OKI |
| Mfg Range | 8540 - 8609 (4) |
| Est First Run | October 1985 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 374CB8A6 | 5 |
| CHR0 | Not Present | 8 KB | 958F2B60 | 5 |
| N/A | ROMs Combined | 40 KB | 73418721 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | OKI | HFC-CH 0 | Chip-on-Board PCB | PCB | 5X 02 | 8540 | 0H-F4 |
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
