Release Info
| Catalog ID | HVC-YO |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 14, 1991 |
| Publisher | Nintendo |
| Developer | Game Freak |
| Players | 2 |
| Peripherals | Famicom Controller |

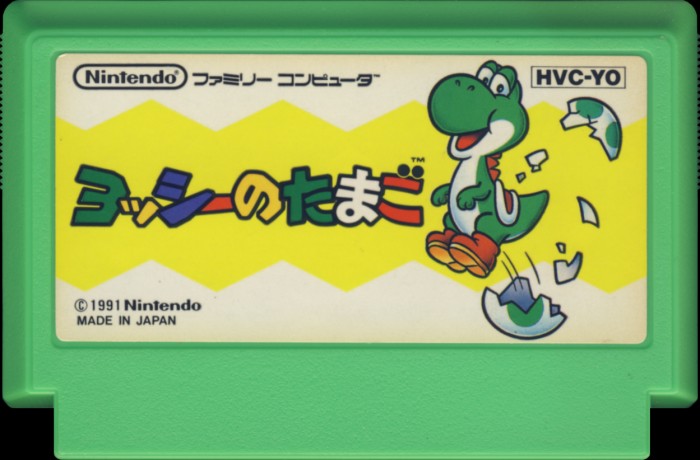

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Lime |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-YO |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17 |

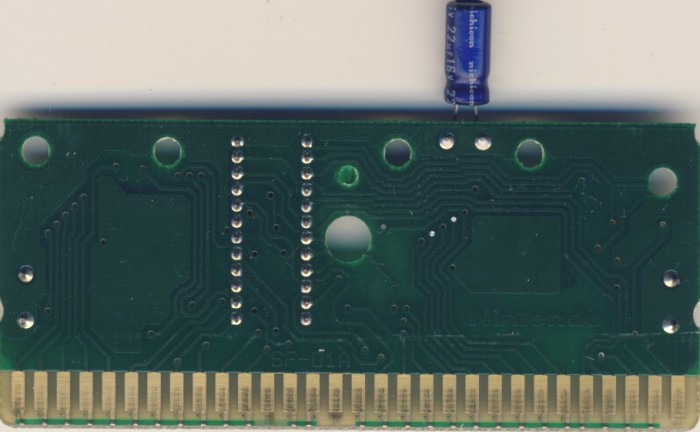

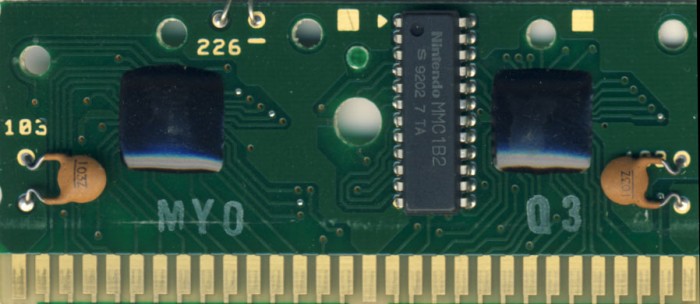

PCB Properties
| Name | SF-01A |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | 9106 - 9219 (5) |
| Est First Run | February 1991 |
| PCB Class | HVC-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 8C37A7D5 | 5 |
| CHR0 | Not Present | 32 KB | 7BD7F4DF | 5 |
| N/A | ROMs Combined | 160 KB | 1E4D3831 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | _UnkMfg17 | MYO | Chip-on-Board PCB | PCB | Q3 | ||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9202 7 TA | 9202 |
