Release Info
| Catalog ID | HFC-BH |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 5, 1987 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Pink |
| Form Factor | Small |
| Embossed Text | |

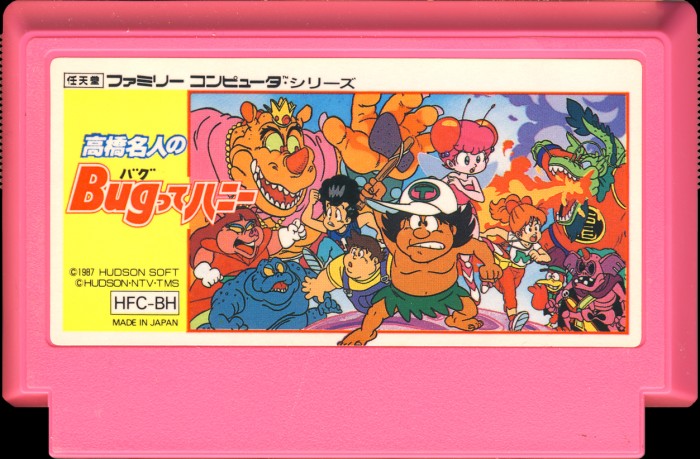

| Front Label ID | HFC-BH |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17 |
PCB Properties

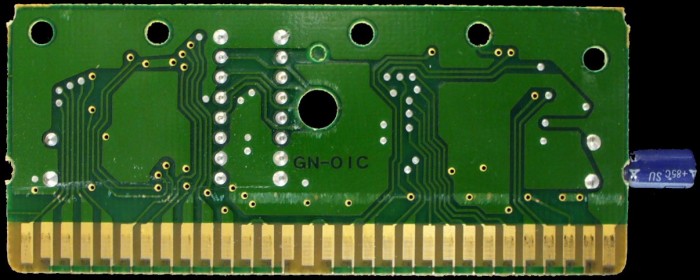

| Name | GN-01C |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | 8719 - 8846 (2) |
| Est First Run | May 1987 |
| PCB Class | HVC-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 64EDBAE3 | 2 |
| CHR0 | Not Present | 32 KB | 62FE4869 | 2 |
| N/A | ROMs Combined | 160 KB | 2526C943 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

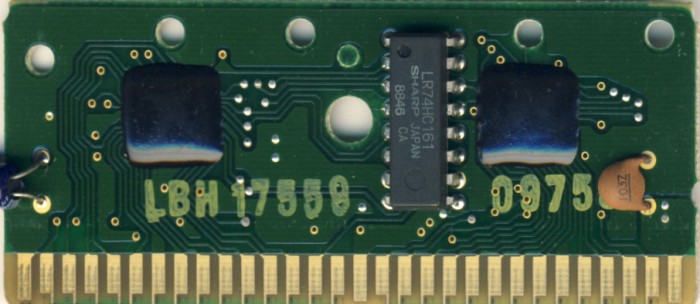

| PCB | _UnkMfg17 | LBH | Chip-on-Board PCB | PCB | 17559 09758 | ||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8846 CA | 8846 |
