Release Info
| Catalog ID | NAM-FB-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 19, 1987 |
| Publisher | Namco |
| Developer | Woodplace |
| Players | 1 |
| Peripherals | Famicom Controller |

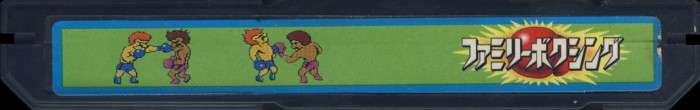

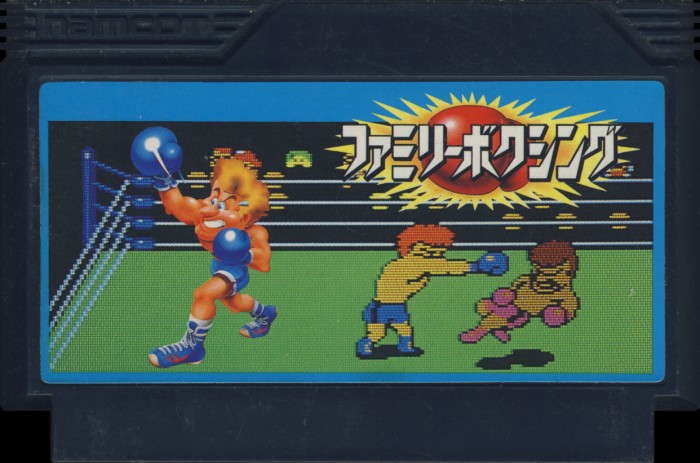

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

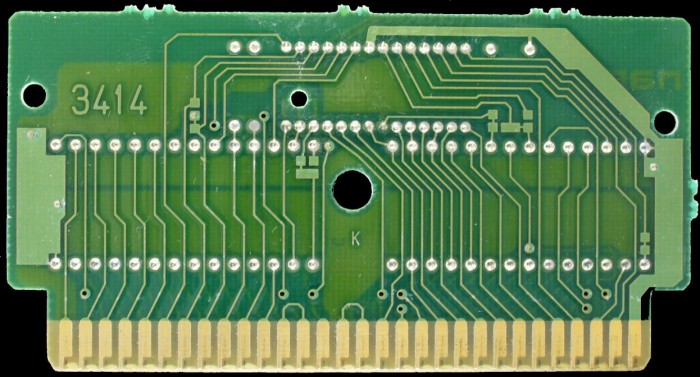

PCB Properties
| Name | 3414 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8723 - 8727 (6) |
| Est First Run | June 1987 |
| PCB Class | NAMCOT-3414 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 108 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTFBPR | 64 KB | 3598238F | 6 |
| CHR0 | NAMCOTFBCH | 64 KB | 0F7F524D | 6 |
| N/A | ROMs Combined | 128 KB | 5B4C6146 | 6 |

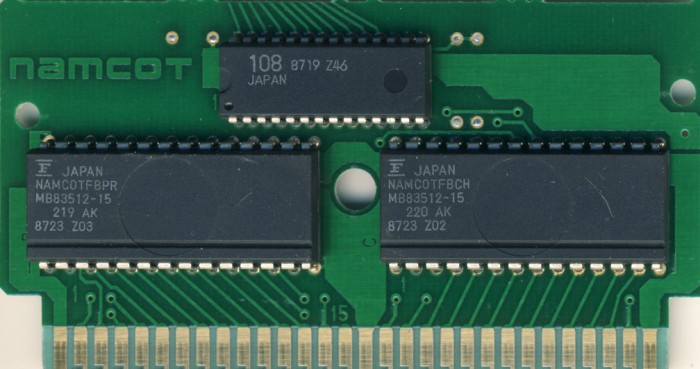

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Fujitsu | MB83512-15 219 AK | Mask ROM 64 KB | DIP-28 | 8727 Z03 | 8727 | |
| C | Fujitsu | MB83512-15 220 AK | Mask ROM 64 KB | DIP-28 | 8723 Z02 | 8723 | |
| Fujitsu | 108 | Namcot 108 | DIP-28 | 8719 Z46 | 8719 |
