Release Info
| Catalog ID | KON-RC819 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 7, 1987 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC819 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

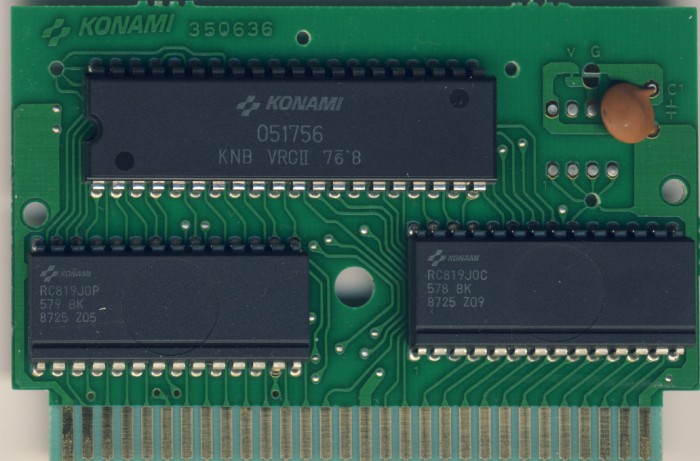

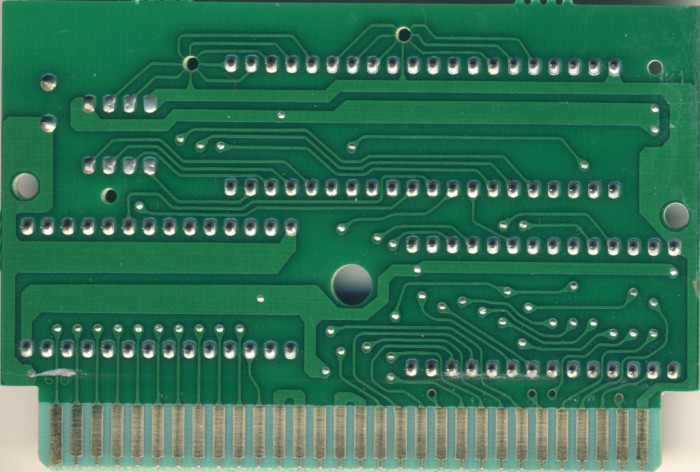

PCB Properties
| Name | 350636 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8725 - 8725 (2) |
| Est First Run | June 1987 |
| PCB Class | KONAMI-VRC-2 |
| iNES Mapper | 23 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC819J0P | 128 KB | C8859038 | 2 |
| CHR0 | RC819J0C | 128 KB | DCFA8063 | 2 |
| N/A | ROMs Combined | 256 KB | 49123146 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8725 Z05 | 8725 | |
| IC2 | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8725 Z09 | 8725 | |
| IC3 | Panasonic | 051756 VRC II KNB | Konami VRC II | DIP-40 | 7 | 8724 |
