Release Info
| Catalog ID | BA-DBZ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 27, 1990 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

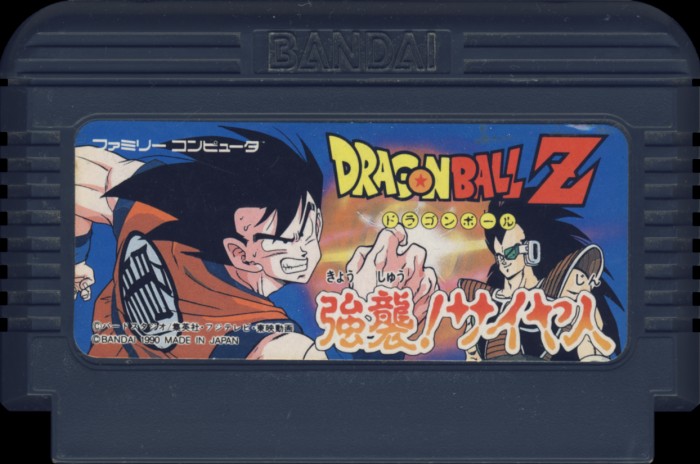

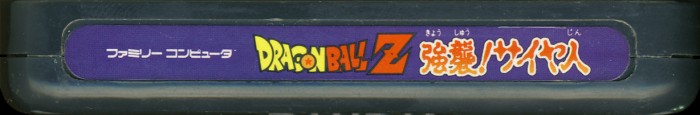

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

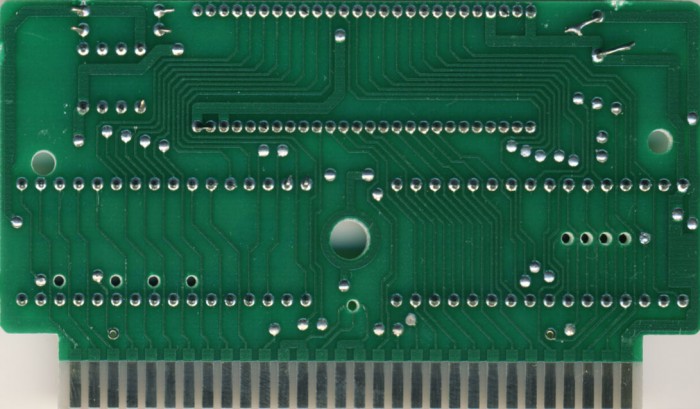

PCB Properties
| Name | DRAGON BALL Z |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 9037 - 9049 (5) |
| Est First Run | September 1990 |
| PCB Class | BANDAI-LZ93D50+24C01 |
| iNES Mapper | 159 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 24C01, FCG-3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI'90 D·B·Z PRG | 256 KB | 31CD9903 | 5 |
| CHR0 | BANDAI'90 D·B·Z CHR | 256 KB | 985CC355 | 5 |
| N/A | ROMs Combined | 512 KB | 183859D2 | 5 |

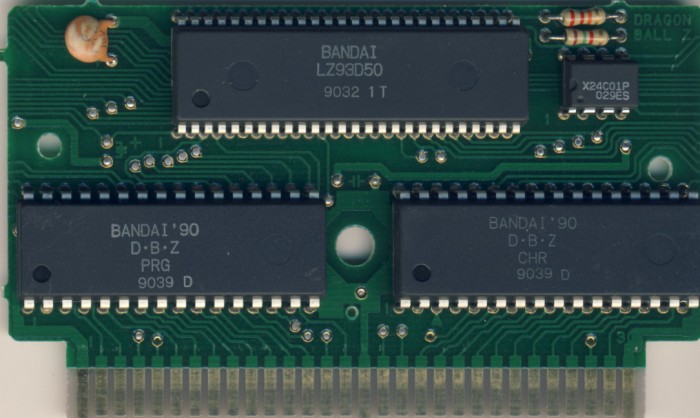

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9039 D | 9039 | ||
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9039 D | 9039 | ||
| Sharp | LZ93D50 | Bandai FCG-3 | DIP-52 | 9032 1 T | 9032 | ||
| Xicor | X24C01P | Serial EEPROM 1 kb | DIP-8 | 029 ES | 9029 |
