Release Info
| Catalog ID | JF-05 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 27, 1985 |
| Publisher | Jaleco |
| Developer | Hect |
| Players | 2 |
| Peripherals | Famicom Controller |

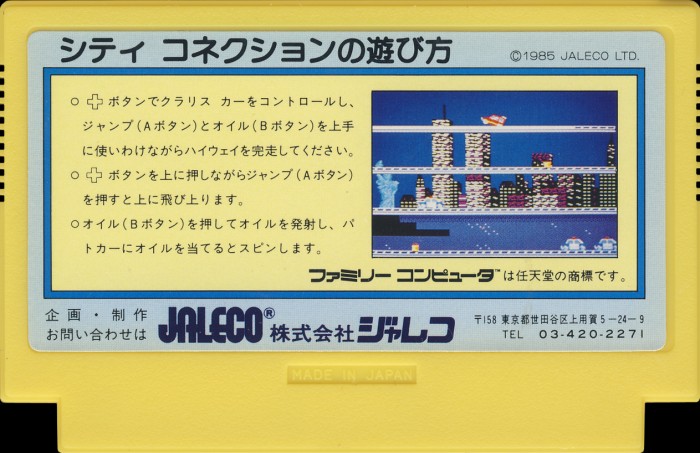

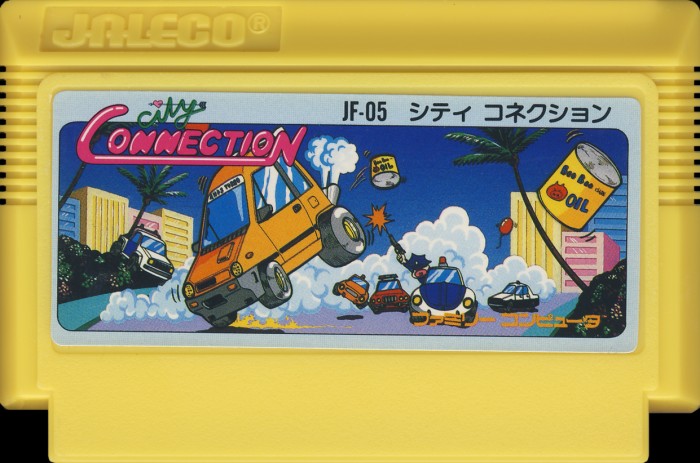

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Yellow |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-05 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

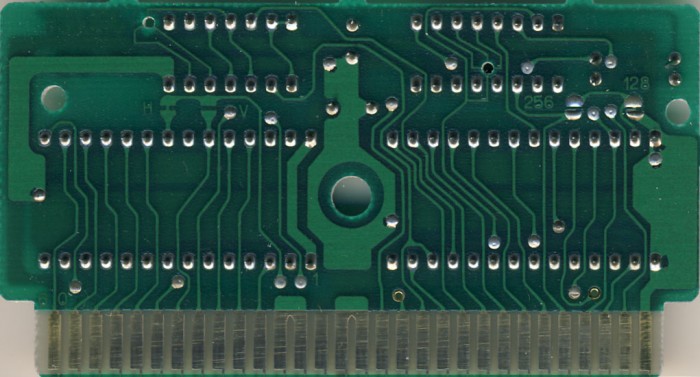

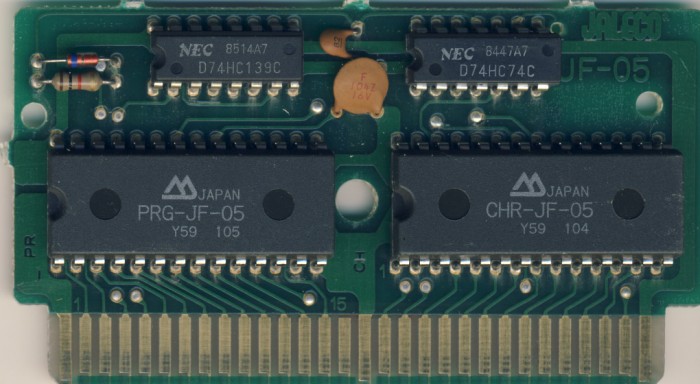

PCB Properties
| Name | JF-05 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8535 - 9029 (2) |
| Est First Run | September 1985 |
| PCB Class | JALECO-JF-05 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PRG-JF-05 | 16 KB | DDA9F780 | 2 |
| CHR0 | CHR-JF-05 | 16 KB | CD06F259 | 2 |
| N/A | ROMs Combined | 32 KB | 20F98977 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Seiko-Epson | S23128 | Mask ROM 16 KB | DIP-28 | 59 Y | 8535 | |
| CH | Seiko-Epson | S23128 | Mask ROM 16 KB | DIP-28 | 59 Y | 8535 | |
| NEC | D74HC139C | 74-139 Series | DIP-16 | 8514 A7 | 8514 | ||
| NEC | D74HC74C | 74-74 Series | DIP-14 | 8447 A7 | 8447 |
