Release Info
| Catalog ID | JF-22 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 28, 1989 |
| Publisher | Jaleco |
| Developer | NMK |
| Players | 1 |
| Peripherals | Famicom Controller |

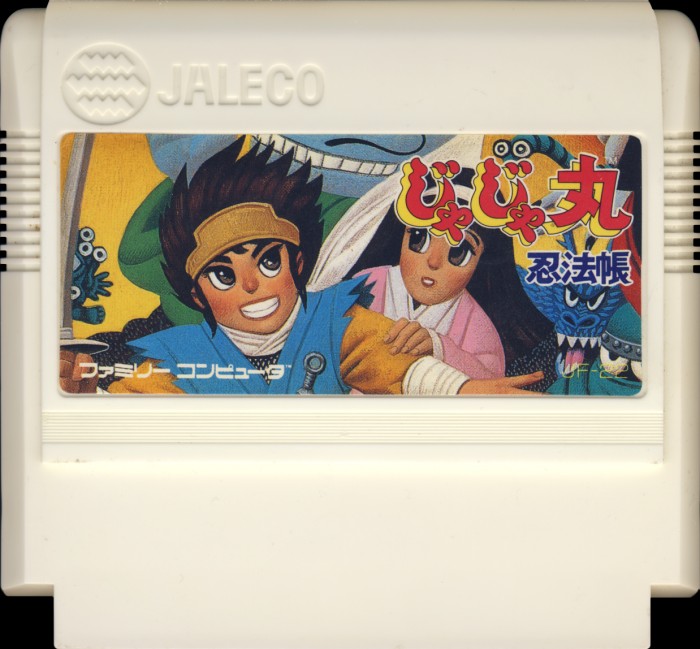

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | White |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-22 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

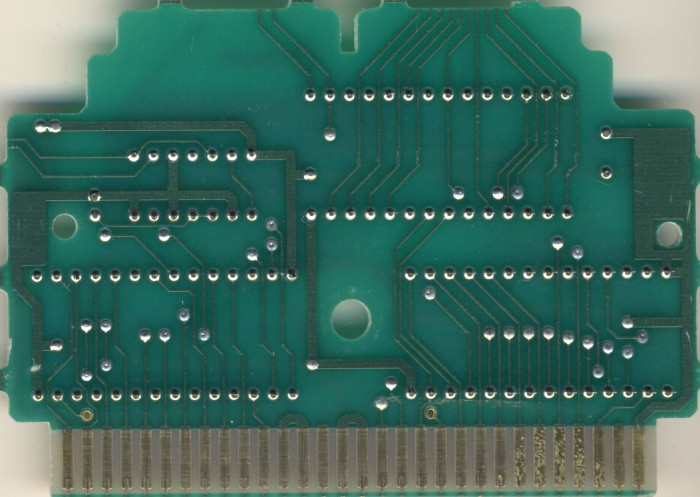

PCB Properties
| Name | JF-22 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8909 - 8910 (2) |
| Est First Run | March 1989 |
| PCB Class | JALECO-JF-22 |
| iNES Mapper | 75 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, VRC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 0091AFBE | 2 |
| CHR0 | Not Present | 128 KB | C8028ED9 | 2 |
| N/A | ROMs Combined | 256 KB | 12F048DF | 2 |

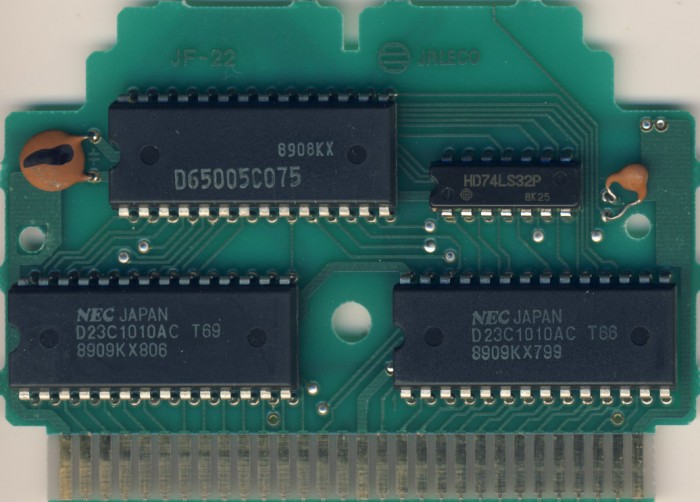

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | D23C1010AC T69 | Mask ROM 128 KB | DIP-28 | 8909 KX806 | 8909 | ||
| NEC | D23C1010AC T66 | Mask ROM 128 KB | DIP-28 | 8909 KX799 | 8909 | ||
| NEC | D65005C075 | Konami VRC | DIP-28 | 8908 KX | 8908 | ||
| Hitachi | HD74LS32P | 74-32 Series | DIP-14 | 8K2 5 | 8841 |
